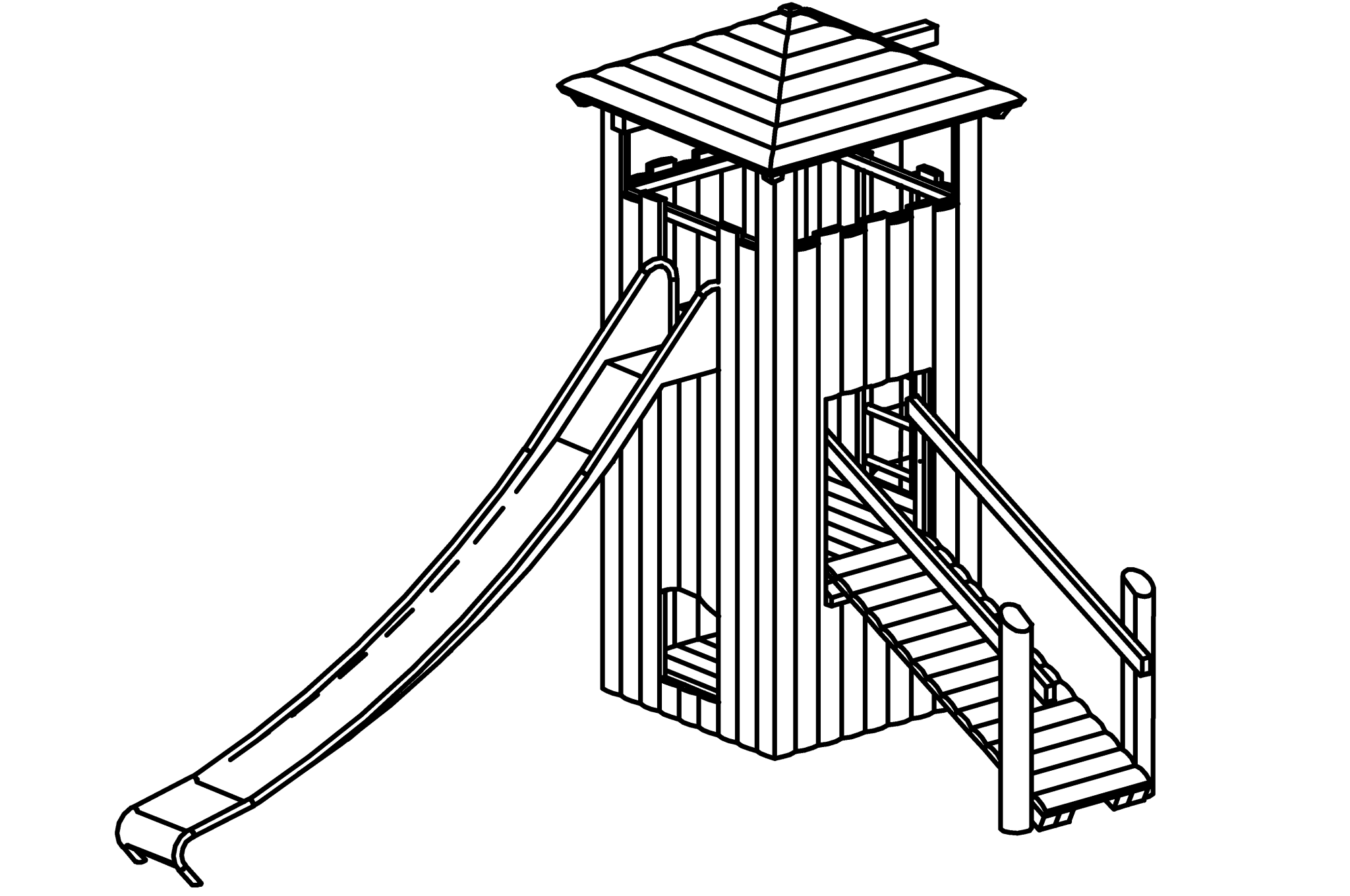

Tower Combination 30
Tower Combination 30

Tower Combination 30

Appliance made from non-impregnated mountain larch, sawn timber heart-cut. Rinds (4-5 cm) white-peeled by hand, natural tree surface remains tangible and tactile. Climbing rungs made of hardwood (ash) Ø 4.2 cm, milled, mortised, secured against twisting. Overall construction of the slide made of 2 mm stainless steel, in drawn box form, surface glass bead blasted, without weld seam between slide surface and side cheek. Richter-Herkul rope, Ø > 20 mm, made of galvanised six-strand steel cables, covered and bonded with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. S-connector, Ø 8.1 mm, made of high-quality stainless steel, rounded.
Article no.
L2.30001

Dimension

Length cm:580
Width cm:330
Height cm:370

Falling space

Length cm:940
Width cm:660
Height cm:200

Assembly

Floor anchoring:made of steel for casting
