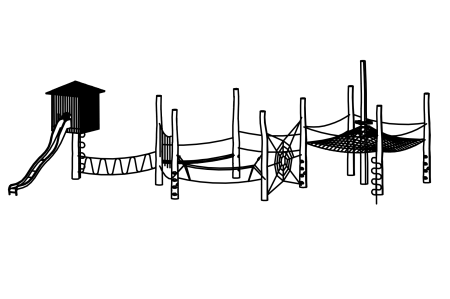

Climbing forest - design example 01, hemp

White peeled oak trunks. Timbers made of non-impregnated mountain larch, with slanted end grain (wood protection measure), sawn timber heart-cut. Richter-Herkul rope, Ø > 20 mm, made of galvanised six-strand steel cables, wrapped and bonded with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. S-connector, Ø 8.1 mm, made of high-quality stainless steel, rounded. Cardan joint, hot-dip galvanised, consists of two sintered metal plain bearings, allows free swinging in all directions. Swivelling cable connection. Retractable two-part screws. Back and forth movements with sintered metal plain bearings, self-lubricating. Chains made of V2A or V4A with high corrosion resistance, short links, without eyelets on the connecting parts, easily replaceable and easy to shorten. Rope colour hemp.

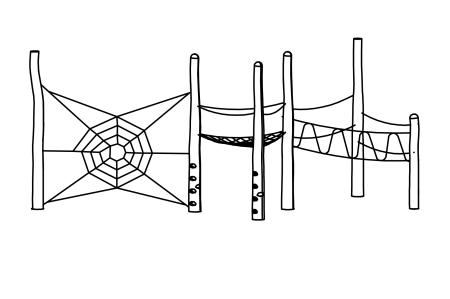

Climbing forest - design example 02, hemp

White peeled oak trunks. Timbers made of non-impregnated mountain larch, with slanted end grain (wood protection measure), sawn timber heart-cut. Richter-Herkul rope, Ø > 20 mm, made of galvanised six-strand steel cables, wrapped and bonded with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. S-connector, Ø 8.1 mm, made of high-quality stainless steel, rounded. Cardan joint, hot-dip galvanised, consists of two sintered metal plain bearings, allows free swinging in all directions. Swivelling cable connection. Retractable two-part screws. Back and forth movements with sintered metal plain bearings, self-lubricating. Chains made of V2A or V4A with high corrosion resistance, short links, without eyelets on the connecting parts, easily replaceable and easy to shorten. Rope colour hemp.

Climbing forest - design example 01, red

White peeled oak trunks. Timbers made of non-impregnated mountain larch, with slanted end grain (wood protection measure), sawn timber heart-cut. Richter-Herkul rope, Ø > 20 mm, made of galvanised six-strand steel cables, wrapped and bonded with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. S-connector, Ø 8.1 mm, made of high-quality stainless steel, rounded. Cardan joint, hot-dip galvanised, consists of two sintered metal plain bearings, allows free swinging in all directions. Swivelling cable connection. Retractable two-part screws. Back and forth movements with sintered metal plain bearings, self-lubricating. Chains made of V2A or V4A with high corrosion resistance, short links, without eyelets on the connecting parts, easily replaceable and easy to shorten. Rope colour red.

Climbing forest - design example 02, red

White peeled oak trunks. Timbers made of non-impregnated mountain larch, with slanted end grain (wood protection measure), sawn timber heart-cut. Richter-Herkul rope, Ø > 20 mm, made of galvanised six-strand steel cables, wrapped and bonded with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. S-connector, Ø 8.1 mm, made of high-quality stainless steel, rounded. Cardan joint, hot-dip galvanised, consists of two sintered metal plain bearings, allows free swinging in all directions. Swivelling cable connection. Retractable two-part screws. Back and forth movements with sintered metal plain bearings, self-lubricating. Chains made of V2A or V4A with high corrosion resistance, short links, without eyelets on the connecting parts, easily replaceable and easy to shorten. Rope colour red.

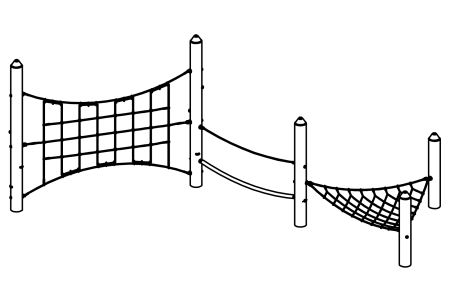

Rope Course Type 01

Columns made of self-compacting reinforced concrete C40/50, steel-reinforced, Ø 25 cm, grain size 0 to 8 mm, sandblasted surface. Richter-Herkuleseil, Ø > 20 mm, made of galvanised six-strand steel cables, wrapped and bonded with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. S-connector, Ø 8.1 mm, made of high-quality stainless steel, rounded. Swivelling cable connection. Articulated cable connection with precision-fit fitting without dangerous openings with sintered metal plain bearing and adjustable screw connection. Profile disc for optimum pressure distribution and protection against water ingress. Adjustable two-part screws. Back and forth movements with sintered metal plain bearing, self-lubricating. Chains made of V2A or V4A with high corrosion resistance, short links, without eyelets on the connecting parts, easily replaceable and easy to shorten. Cone point made of V2A. Professional climbing grips made of a sand/resin mixture with a secure anti-rotation system to prevent unintentional twisting of the grips.

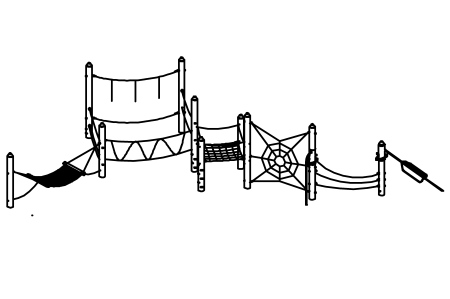

Rope Course Type 02

Columns made of self-compacting reinforced concrete C40/50, steel-reinforced, Ø 25 cm, grain size 0 to 8 mm, sandblasted surface. Richter-Herkuleseil, Ø > 20 mm, made of galvanised six-strand steel cables, wrapped and bonded with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. S-connector, Ø 8.1 mm, made of high-quality stainless steel, rounded. Swivelling cable connection. Articulated cable connection with precision-fit fitting without dangerous openings with sintered metal plain bearing and adjustable screw connection. Profile disc for optimum pressure distribution and protection against water ingress. Adjustable two-part screws. Back and forth movements with sintered metal plain bearing, self-lubricating. Chains made of V2A or V4A with high corrosion resistance, short links, without eyelets on the connecting parts, easily replaceable and easy to shorten. Cone point and whisk made of V2A. Professional climbing grips made of a sand/resin mixture with a secure anti-rotation system to prevent unintentional twisting of the grips.

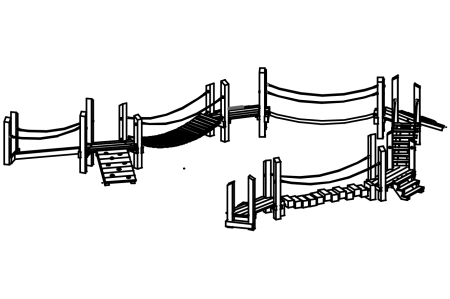

Totter Trail Type 01

Device made of non-impregnated mountain larch, with slanted end grain (wood protection measure), sawn timber heart-cut. Rinds (4-5 cm) white-peeled by hand, natural tree surface remains tangible and tactile. Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling through. Richter-Herkul rope, Ø > 20 mm, made of galvanized six-strand steel ropes, wrapped and glued with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. Profiled washer for optimum pressure distribution and protection against water ingress. Retractable two-part screws. Back and forth movements with sintered metal plain bearing, self-lubricating. Standard rope colour: red

Totter Trail Type 02

Device made of non-impregnated mountain larch, with slanted end grain (wood protection measure), sawn timber heart-cut. Rinds (4-5 cm) white-peeled by hand, natural tree surface remains tangible and tactile. Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling through. Richter-Herkul rope, Ø > 20 mm, made of galvanized six-strand steel ropes, wrapped and glued with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. Profiled washer for optimum pressure distribution and protection against water ingress. Retractable two-part screws. Back and forth movements with sintered metal plain bearing, self-lubricating. Standard rope color red
