Playground pump with integrated pressure connection in the column

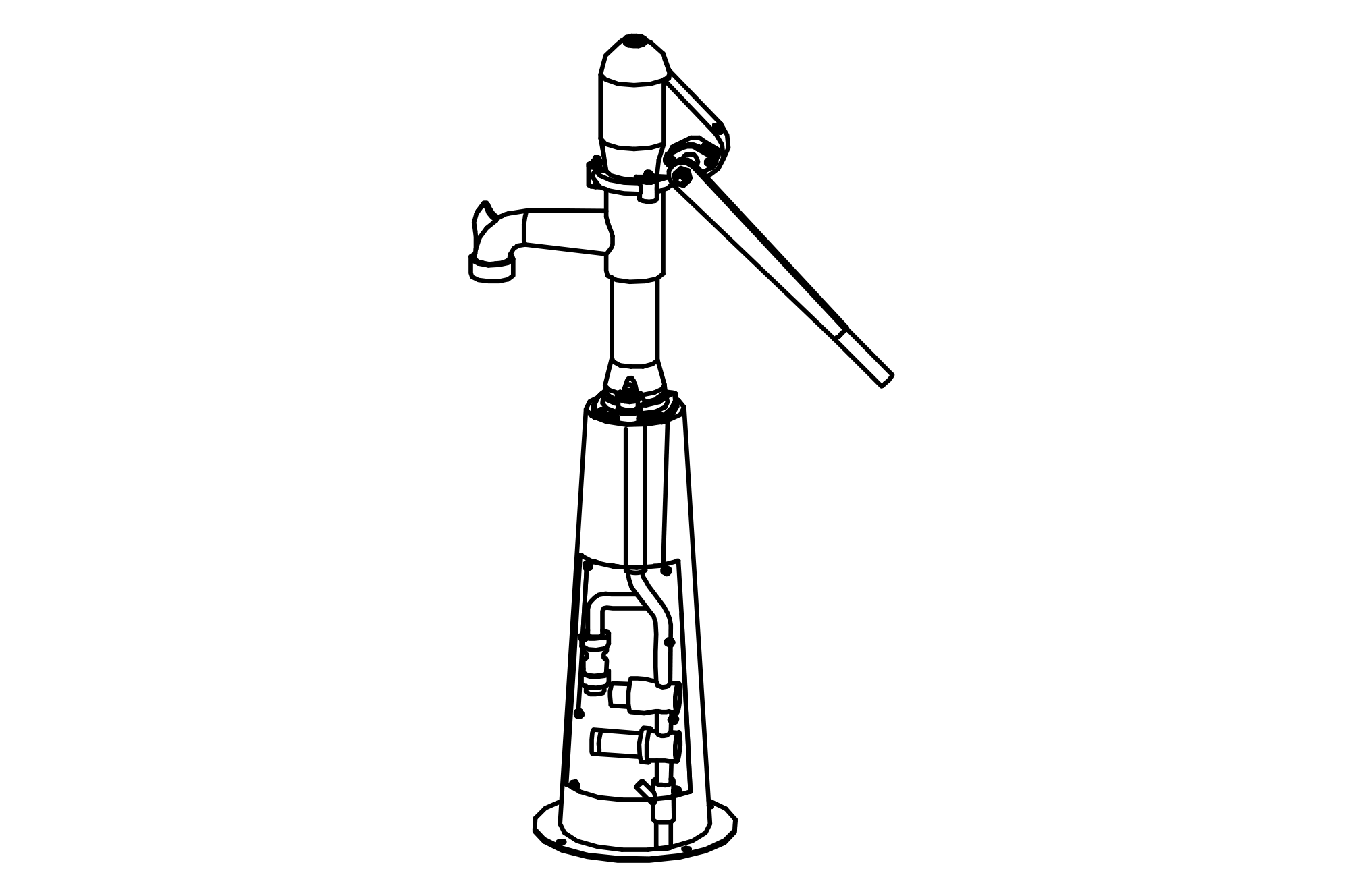

Closed design piston suction pump. Built into the column is the valve combination for direct connection to a pressurised water pipe, a shut-off valve with backflow preventer type EA and drain. Drinking water up to the lower edge of the pump base.
Water outlet height: 104 cm
Width with horizontal swivel arm: 95 cm
Pumping capacity: approx. 0.75 l/stroke
Connection pipe: 1 inch
Water requirement: min. 45 l/min
Water pressure: min. 2.5 bar, max. 6 bar
Water outlet: no drinking water
Article no.
5.17630

Dimension

Length cm:60
Width cm:35
Height cm:150

Assembly

Floor anchoring:made of steel for screwing on
Play valueImagesCatalogue pageMaintenance manualDWG
The element of water with its diverse forms of expression is characterised by flow, liveliness and power. When the playing observer intervenes, different sensory impressions arise. A natural spring can only be found on playgrounds in ideal circumstances, but every play area needs water, even if it ‘only’ comes from a pipe. A water pump with a swivel arm is particularly attractive, as the pumping itself is part of the play value in order to access the precious water. In addition to supplying water, our robust playground pump can also provide stimuli for work and role-play games and encourage communication and co-operation.
