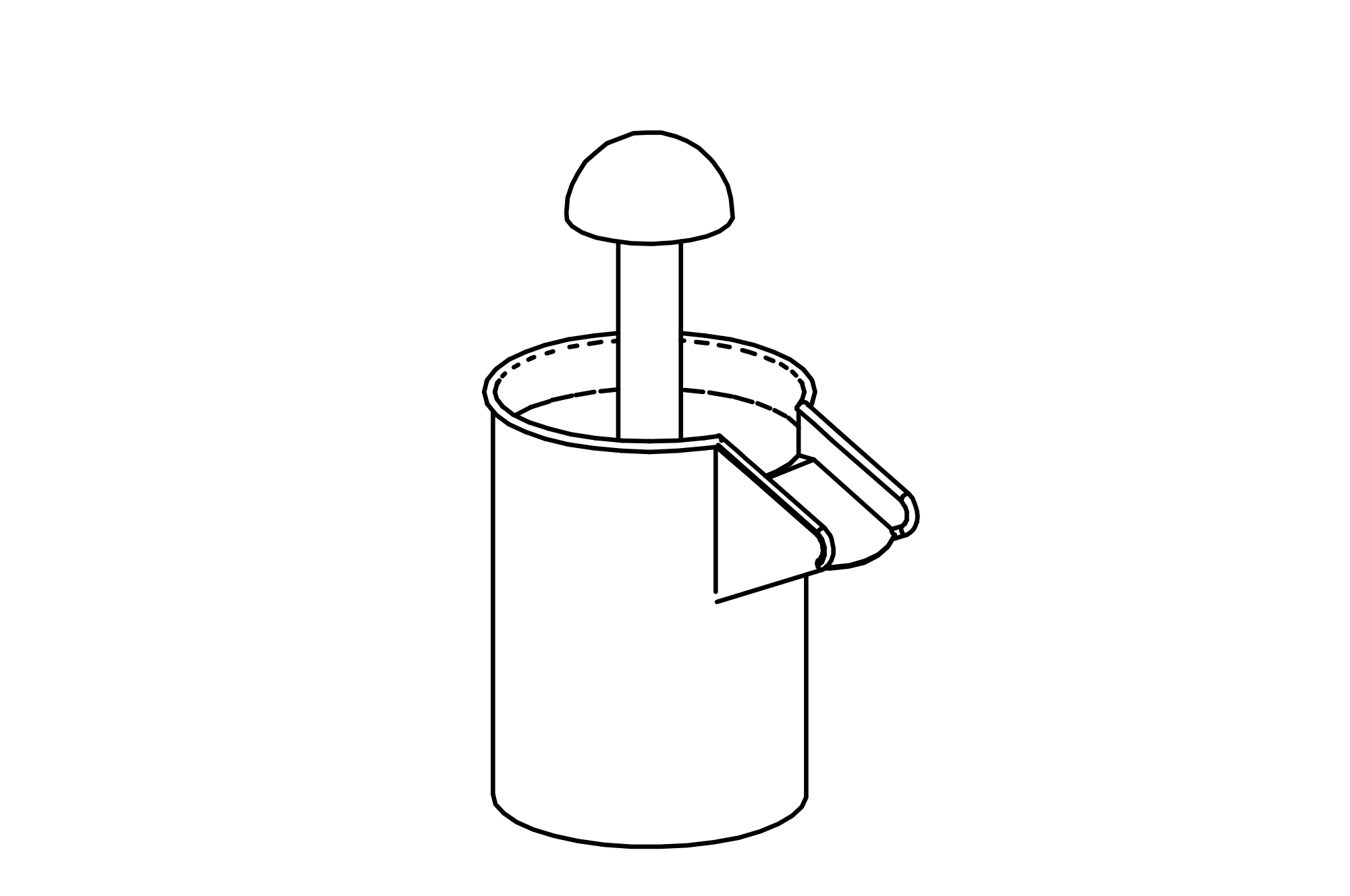

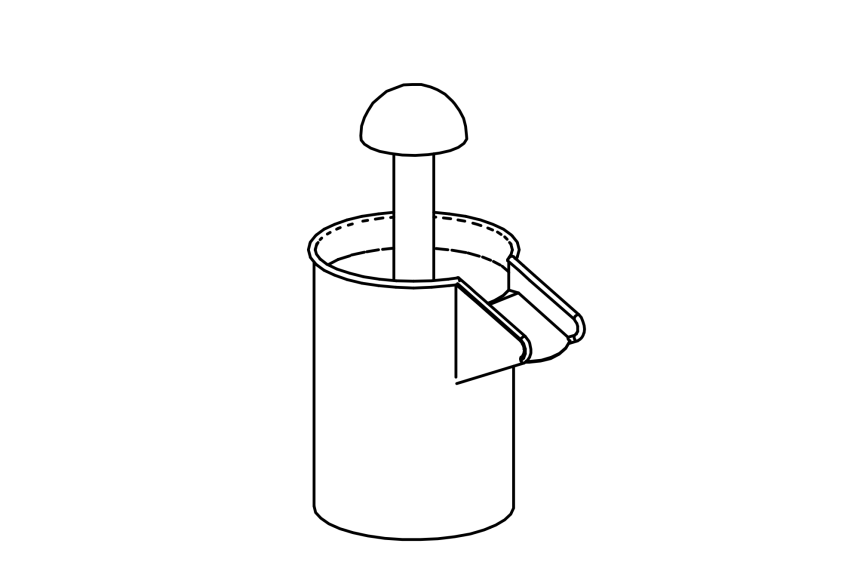

Mushroom Spring, programmable rinsing device
V2A device with self-resetting pressure valve.
Connection line: 3/4 inch (device 3/4 inch inside)
Supply line: pressure-resistant line, diameter 3/4 inch
Water requirement: approx. 10l/min by 3 bar
Water pressure: 2.5 - 5 bar
Water flow time: 25 seconds, adjustable from 0 - 30 seconds
Connection line: 3/4 inch (device 3/4 inch inside)
Supply line: pressure-resistant line, diameter 3/4 inch
Water requirement: approx. 10l/min by 3 bar
Water pressure: 2.5 - 5 bar
Water flow time: 25 seconds, adjustable from 0 - 30 seconds
Article no.
5.18002
Dimension
Length cm:30
Width cm:30
Height cm:70
Assembly
Floor anchoring:made of steel for screwing on

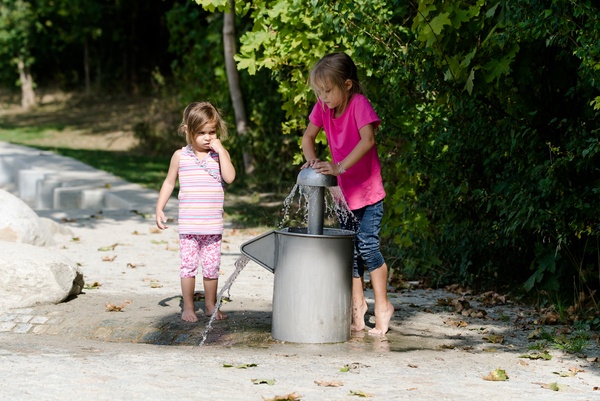

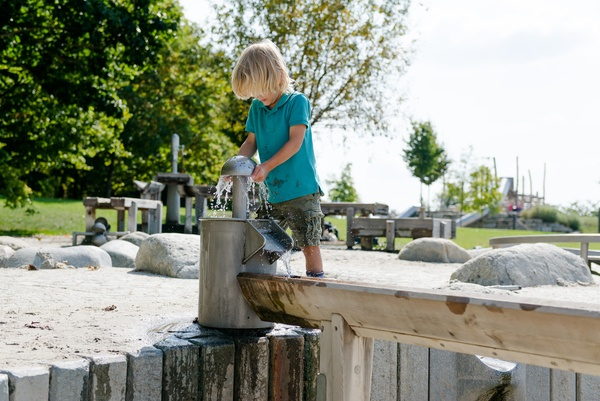

The well designed Mushroom Springs gives off water when the hemisphere on top gets pressed down. The water comes out like a circular veil. When the hemisphere is pressed once, a valve is activated which stops the water flow after 30 seconds (+5 / -10 seconds adjustable), even if pressed permanently. Due to its agreeable design, the Mushroom Springs can also be used in less natural play surroundings.
