Water Push Button with installation housing
Devices made entirely of V2A, glass bead blasted, with coloured RAL 3000 print head, other colours on request.
Connection line: 3/4 inch (device 3/4 inch inside)
Supply line: pressure-resistant line, diameter 3/4 inch
Water requirement: approx. 10l/min
Water pressure: 3 bar
Water flow time: 25 seconds, adjustable from 0 - 30 seconds
Connection line: 3/4 inch (device 3/4 inch inside)
Supply line: pressure-resistant line, diameter 3/4 inch
Water requirement: approx. 10l/min
Water pressure: 3 bar
Water flow time: 25 seconds, adjustable from 0 - 30 seconds
Article no.
5.18020
The following items are obligatory and are also included:
Article no:
Designation
Dimension
Length cm:30
Width cm:30
Height cm:70
Assembly
Floor anchoring:made of steel for screwing on

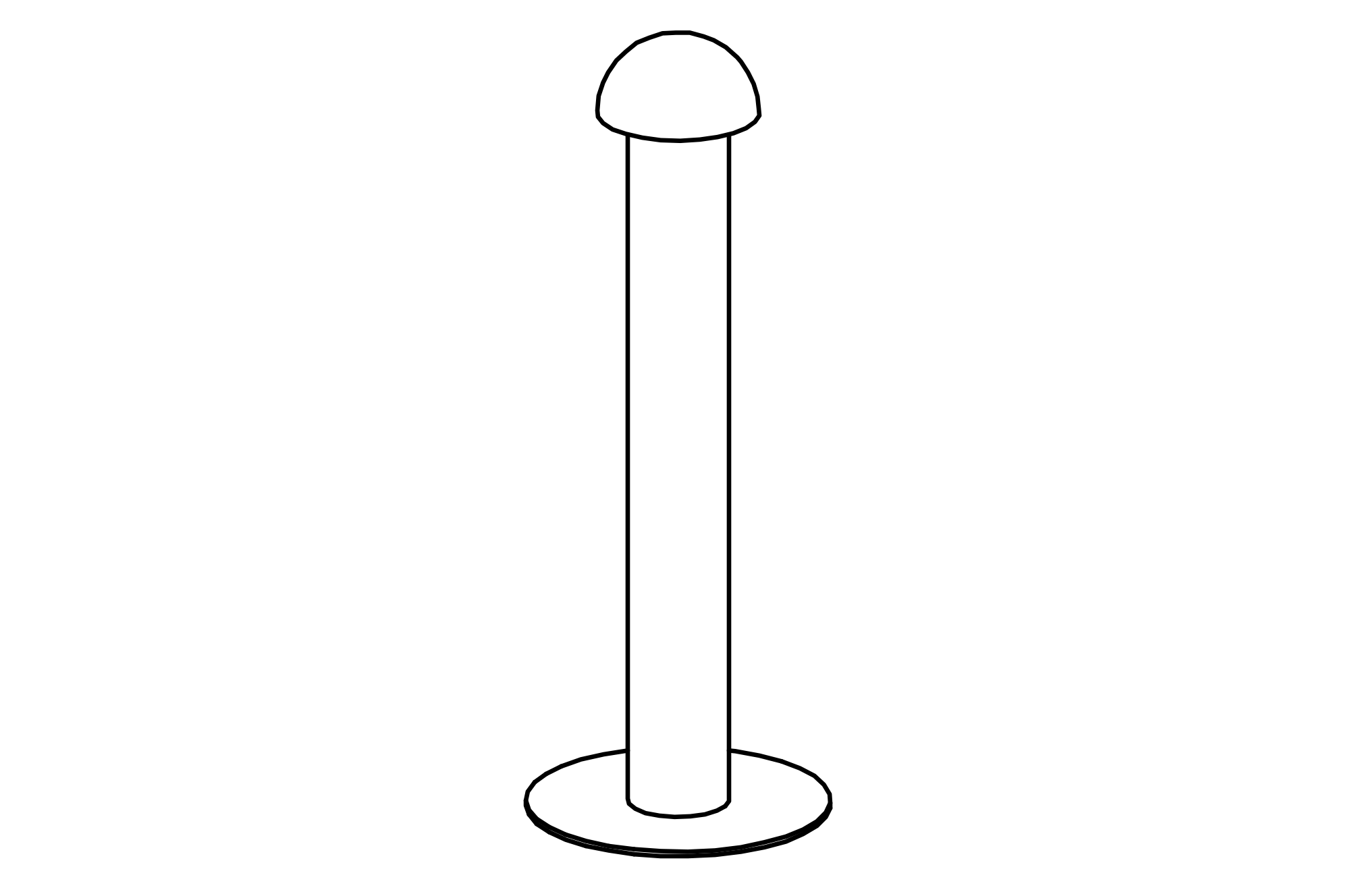

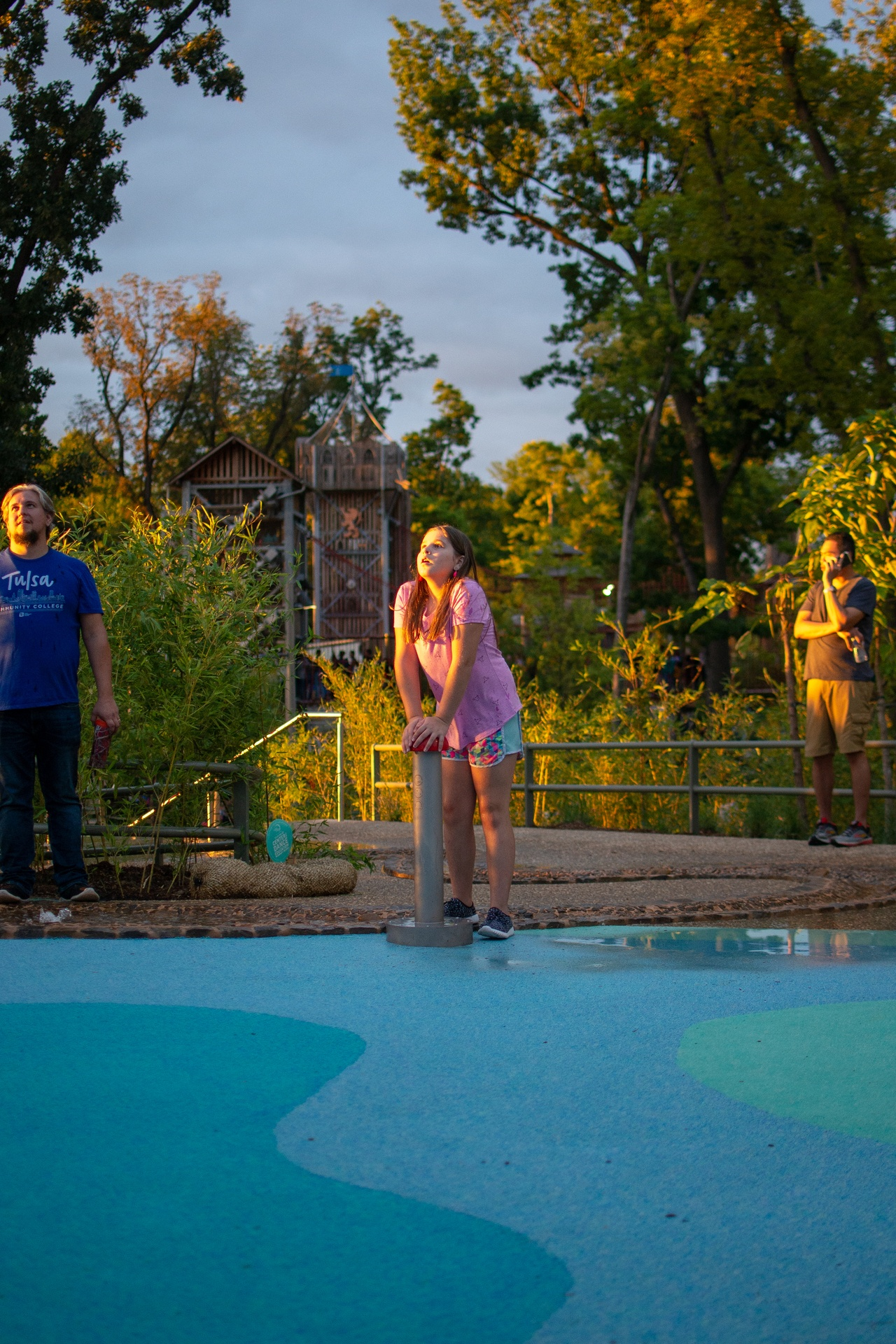

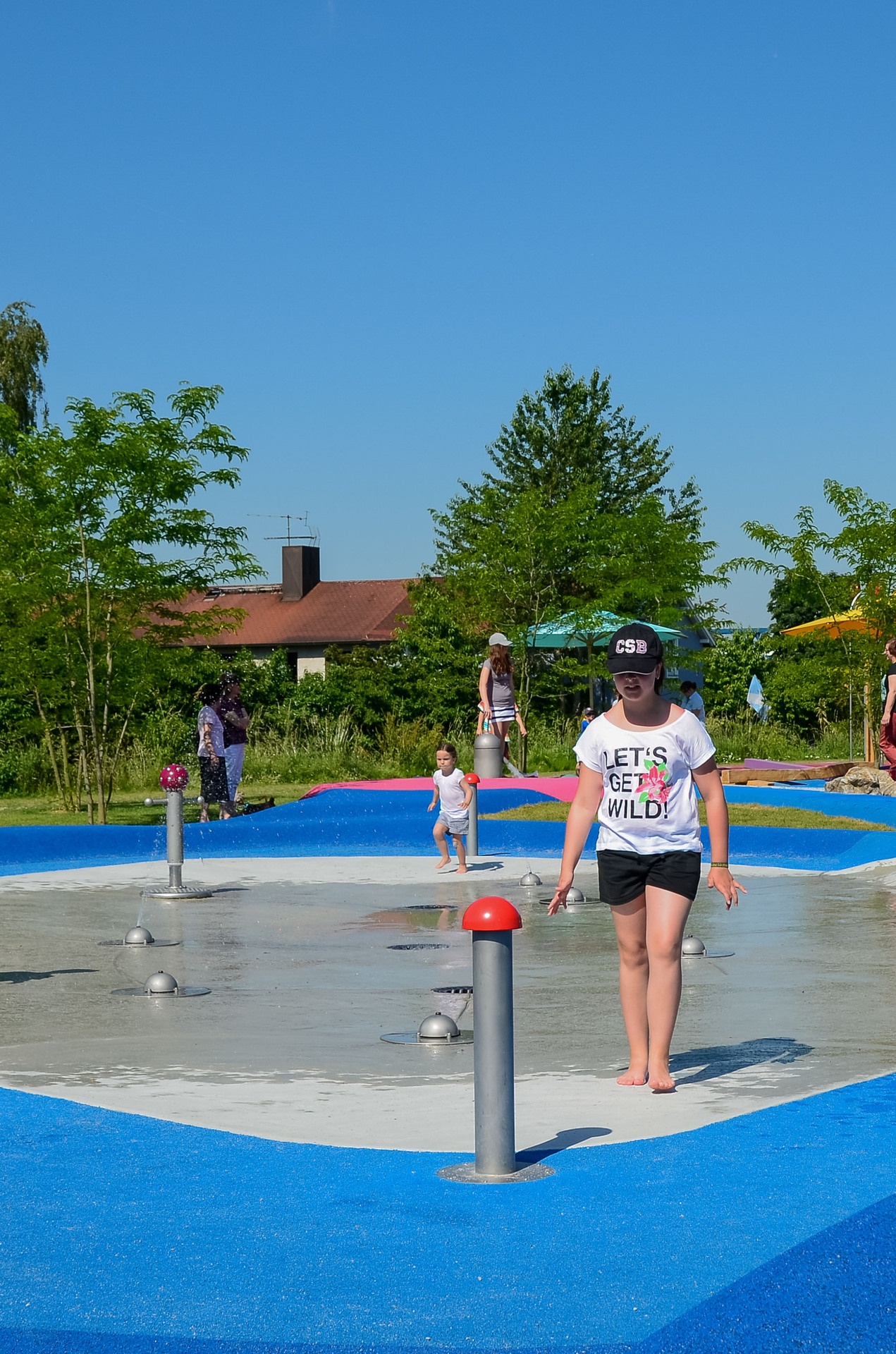

The well designed Water Push Button supplies externally connected nozzles with water when the bright red hemisphere is pressed down. When pressing down the hemisphere, a valve is activated which stops the water flow after 30 seconds (+5 / -10 seconds adjustable), even if pressed permanently. Due to its agreeable design, the Water Push Button can also be used in less natural play surroundings.
