Mushroom Column Spring, programmable rinsing device
Mushroom Column Spring, programmable rinsing deviceMushroom Column Spring, programmable rinsing deviceMushroom Column Spring, programmable rinsing device

Mushroom Column Spring, programmable rinsing device

V2A device with self-resetting pressure valve.
Connection line: 3/4 inch (device 3/4 inch inside)
Supply line: pressure-resistant line, diameter 3/4 inch
Water requirement: approx. 10l/min
Water pressure: 3 bar
Water flow time: 25 seconds, adjustable from 0 - 30 seconds
Article no.
5.18032

Dimension

Length cm:30
Width cm:30
Height cm:70

Assembly

Floor anchoring:made of steel for screwing on
Play valueImagesCatalogue pageMaintenance manualDWG

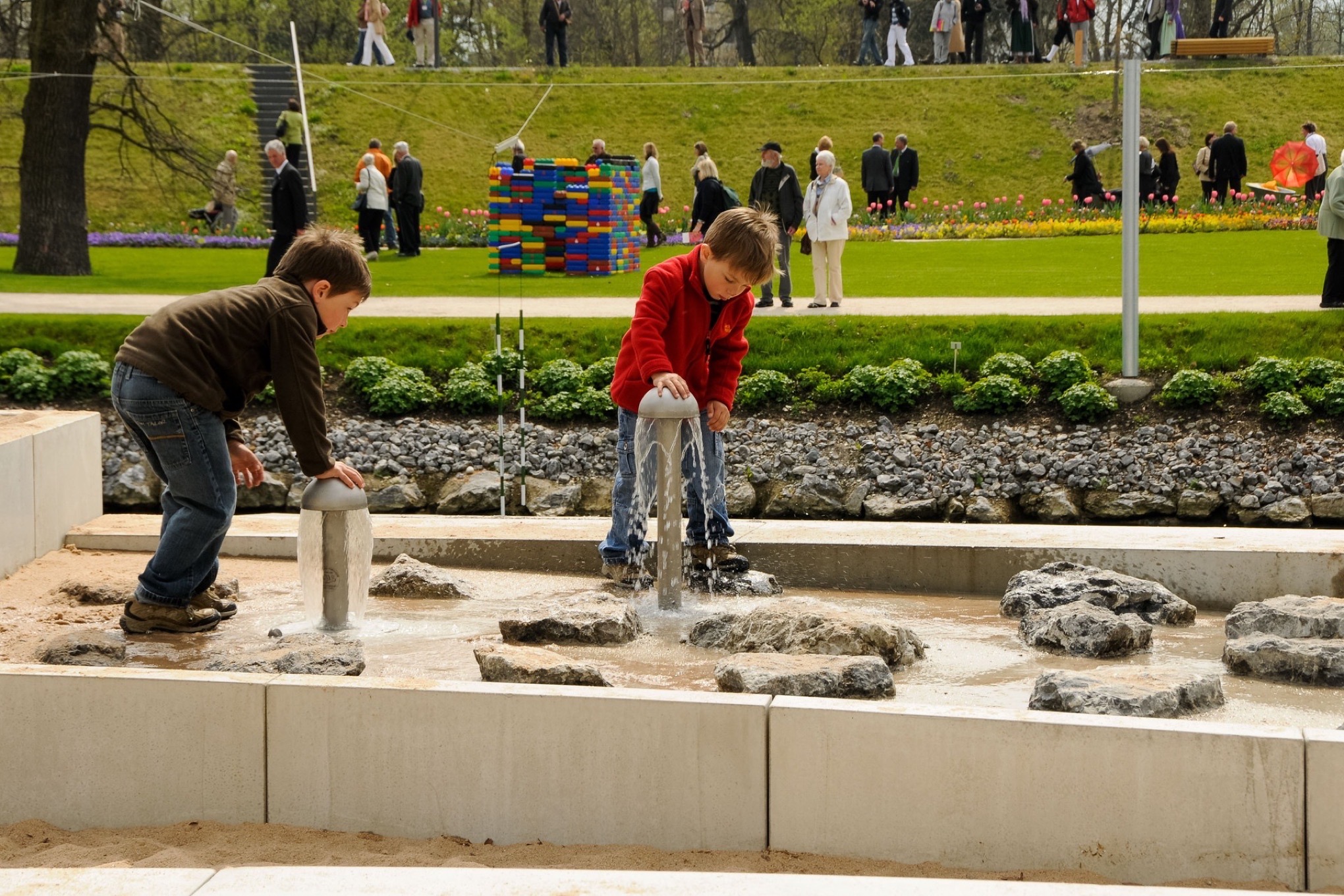

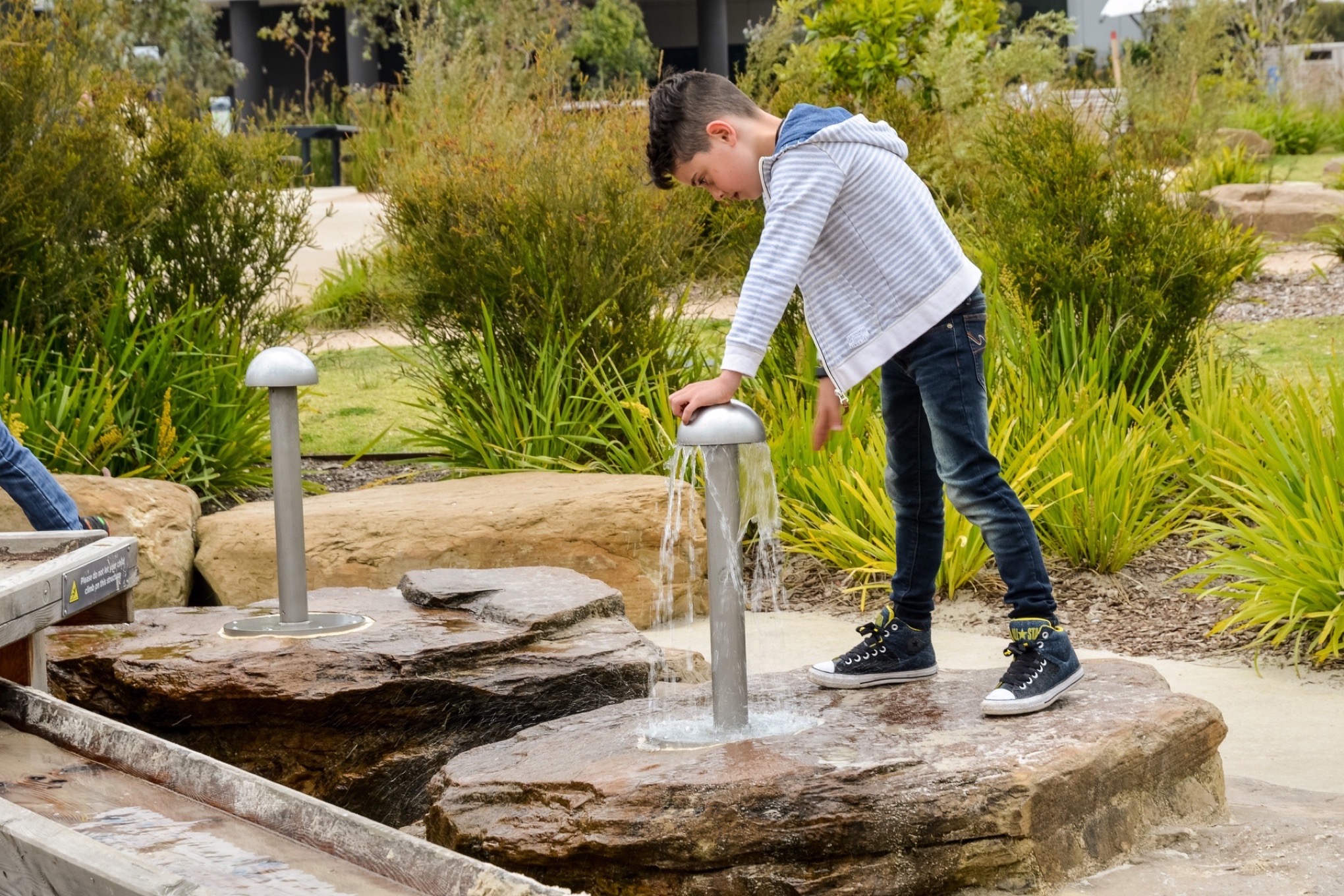

The beautifully designed water pressure button supplies water to externally connected nozzles when the bright red hemisphere is pressed down. Pressing the hemisphere once activates a timer valve that automatically switches off the water flow after 30 seconds (adjustable +5 / -10 seconds), even if the button is pressed continuously. Thanks to its sophisticated design, the water pressure button is also suitable for play areas and squares designed in a modern architectural style.
