Decking with chain handrails for suspension bridge, length 500 cm
Decking with chain handrails for suspension bridge, length 500 cmDecking with chain handrails for suspension bridge, length 500 cm

Decking with chain handrails for suspension bridge, length 500 cm

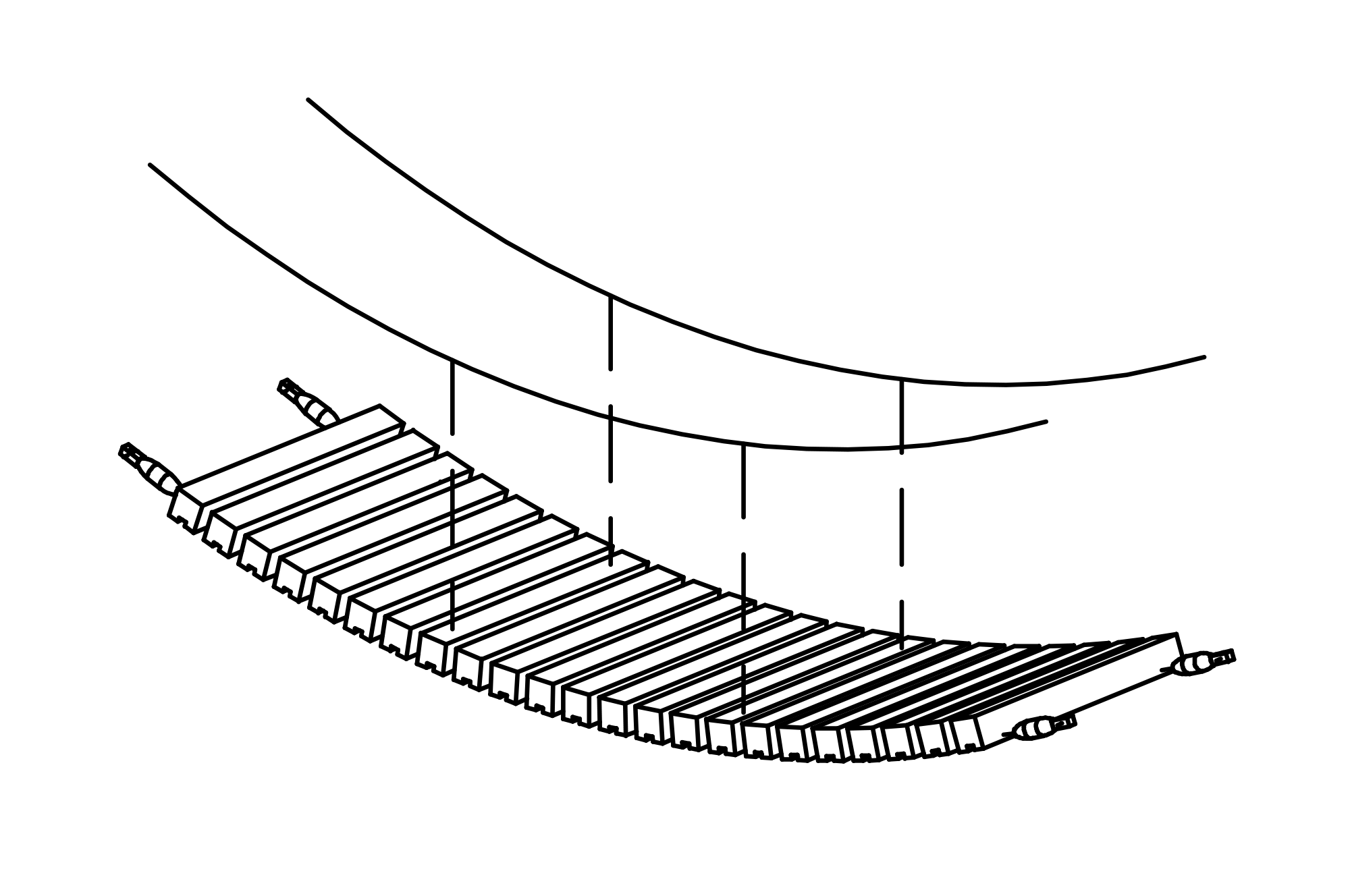

Equipment made of non-impregnated mountain larch, sawn timbers heart-separated, running timbers made of squared timber 8/8 cm, short-link chains (0.6 cm), articulated rope connection, adjustable. Suspension rope Ø 18 mm in Hercules style with steel core, suspended from drop-forged joints.
Article no.
3.66110

Dimension

Length cm:470
Width cm:70
Height cm:70
Play valueImagesCatalogue pageMaintenance manualDWG

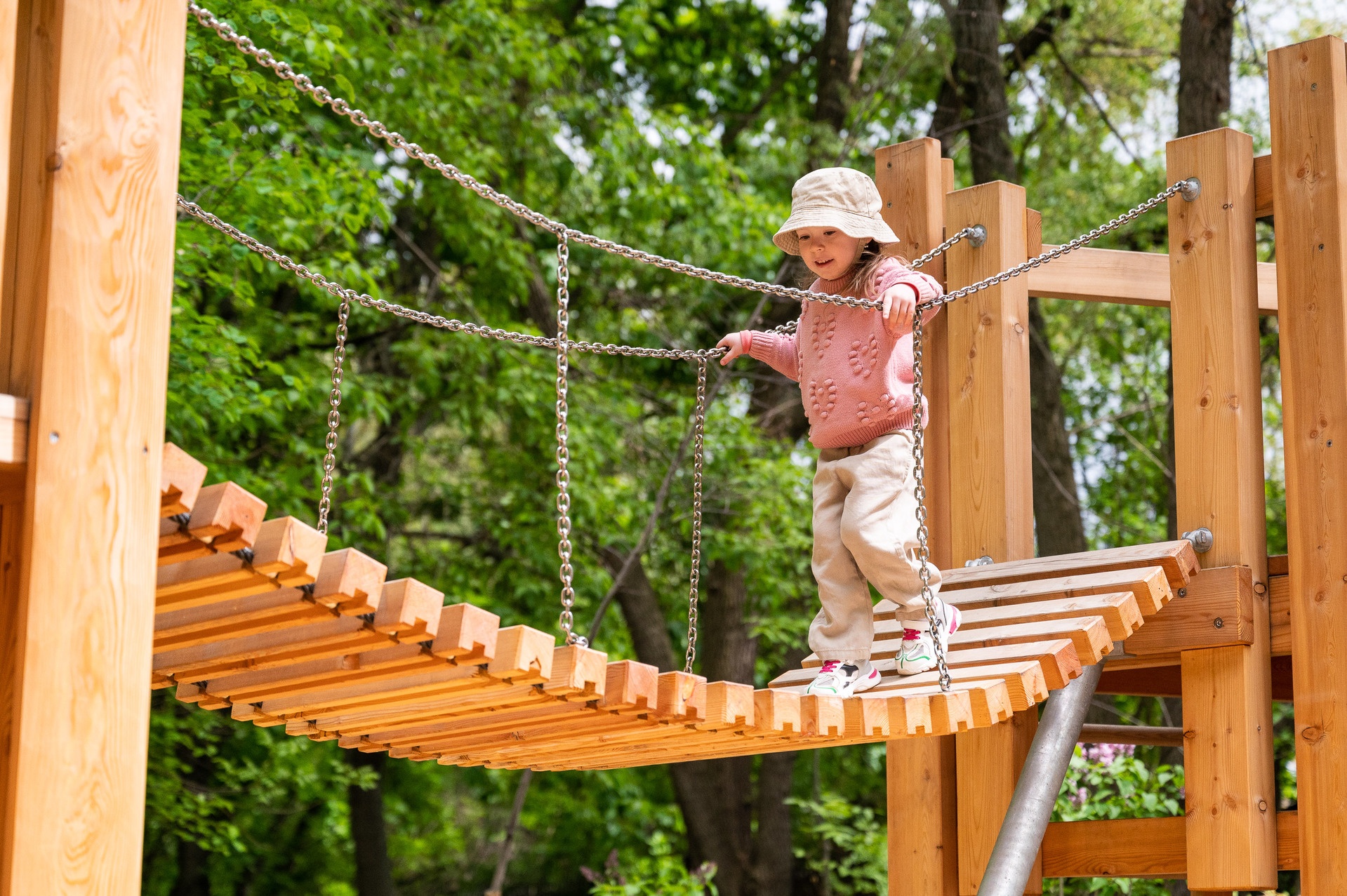

The suspension bridge is an attractive connecting element in playgrounds. Interesting running zones between installed equipment increase the play value. It is fun to practice your own skills on unsafe ground. The running timbers are individually fastened to the suspension ropes, which are connected to the posts in an articulated manner. This makes the bridge covering very flexible and allows many attractive movement games. As an alternative to the chain handrails, we offer handrails made of Richter Hercules type rope. We recommend this design if the rattling of the chain handrails is perceived as disturbing.
