Observation tower
Device made of non-impregnated mountain larch, palisades white-peeled, with slanted end grain (wood protection measure), sawn timber heart-separated. Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling through. Climbing rungs made of hardwood (ash) Ø 4.2 cm, milled, mortised, secured against twisting. Richter hercules rope, Ø > 20 mm, made of galvanised six-strand steel rope, wrapped and glued with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage.
Article no.
3.21500
Dimension
Length cm:270
Width cm:270
Height cm:450
Floor height cm:100, 200, 300
Falling space
Length cm:575
Width cm:640
Height cm:200
Assembly
Floor anchoring:made of steel for casting

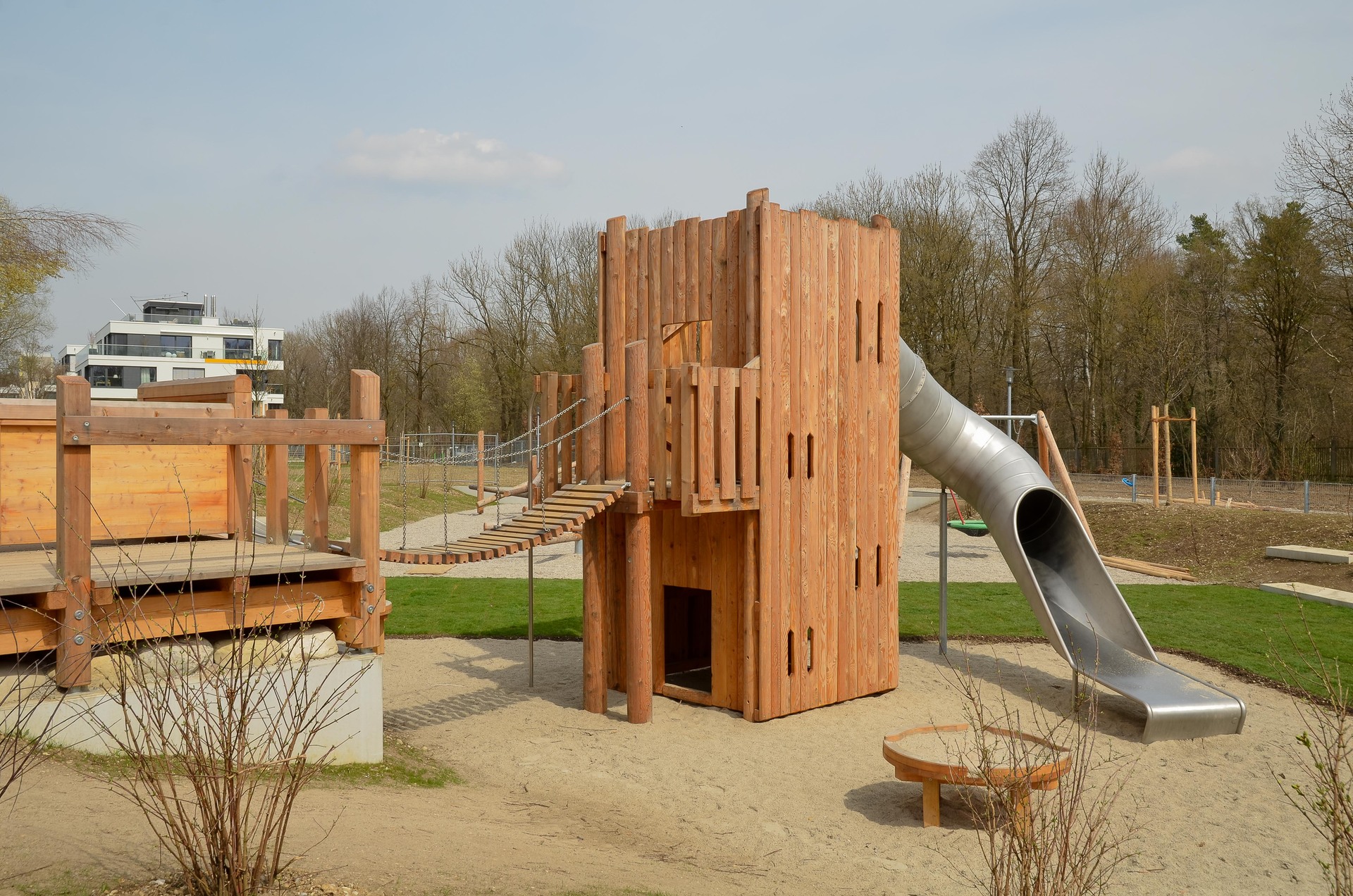

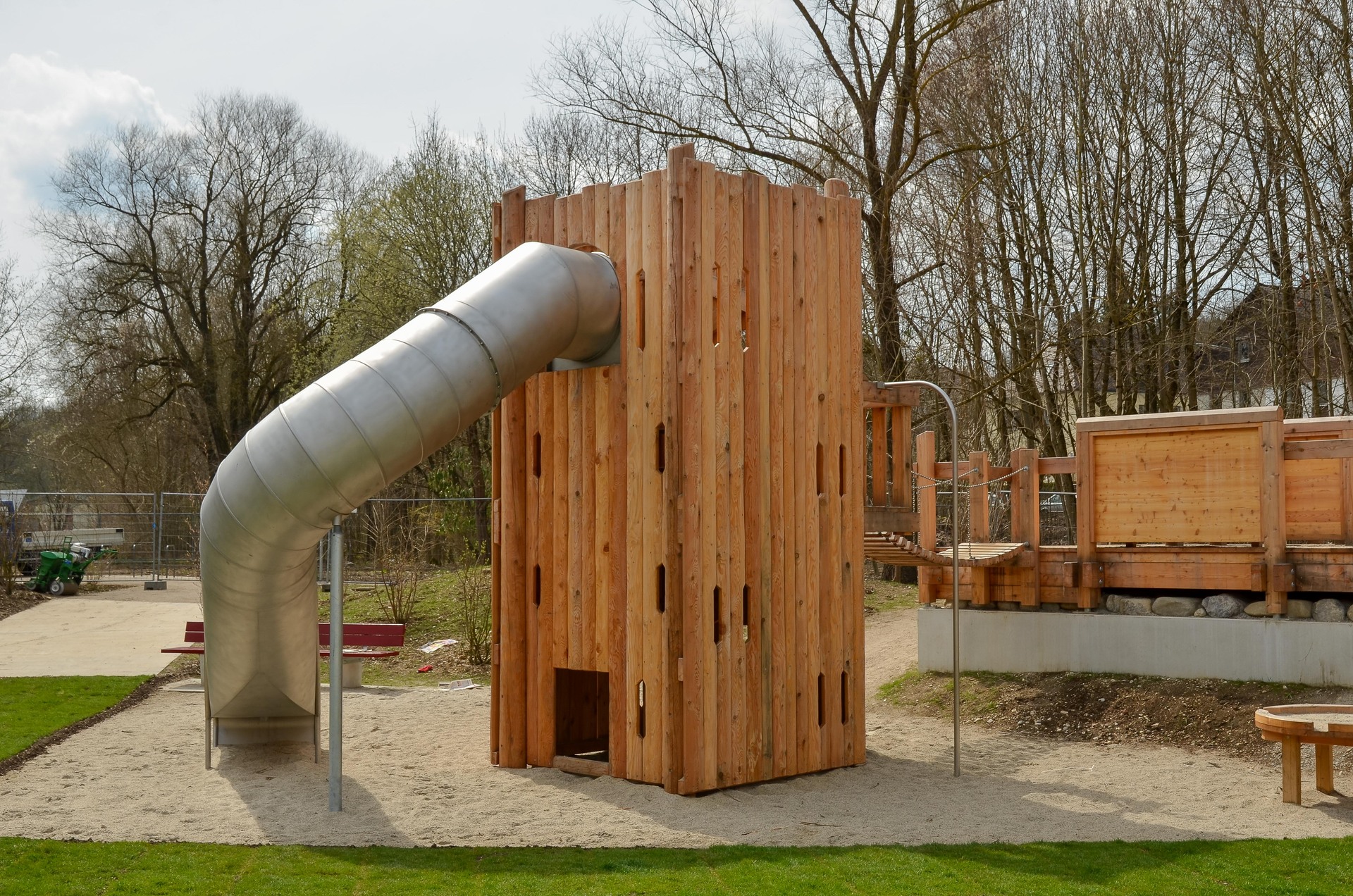

The tower is clad with timber facingmade of natural larch, complete withobservation slits. Inside are three floors,installed offset to one another. Thosepermanently installed intermediate floorscreate cosy rooms. The top floor can bereached via a ladder or you can climbup to the level of the balcony and enjoythe panorama. Use the ladder installedthere to reach the ground again. Thebalcony can also be used as a connectionto other play equipment e.g. with asuspension bridge. In combination with aslide, the Look-Out Tower is an attractiveeye-catcher.
