Three-frequency Pendulum
Stainless steel frame. Back and forth movements with sintered metal plain bearings, self-lubricating. High-quality roller bearings made of chrome steel or stainless steel for rotating elements, low-maintenance, easy to replace, sealed. Glass bead blasted surface. Three heavy plastic balls on stainless steel cables, individually mounted, can be set in motion via a bracket with a stainless steel cable. Support post for explanatory board made of V2A.
Article no.
10.12100
Dimension
Length cm:200
Width cm:100
Height cm:600
Funktionsraum
Length cm:500
Width cm:300
Assembly
Floor anchoring:made of steel for casting

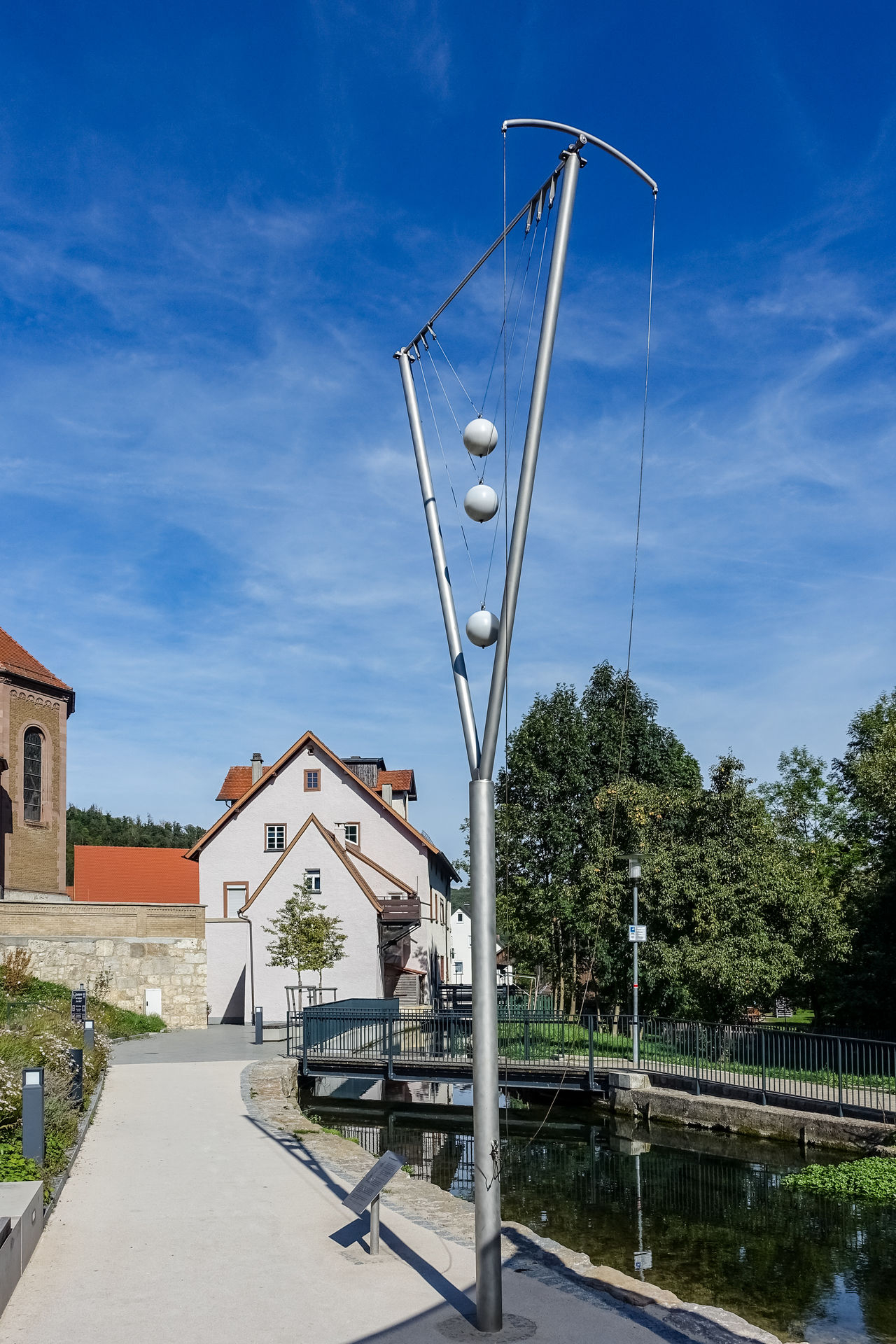

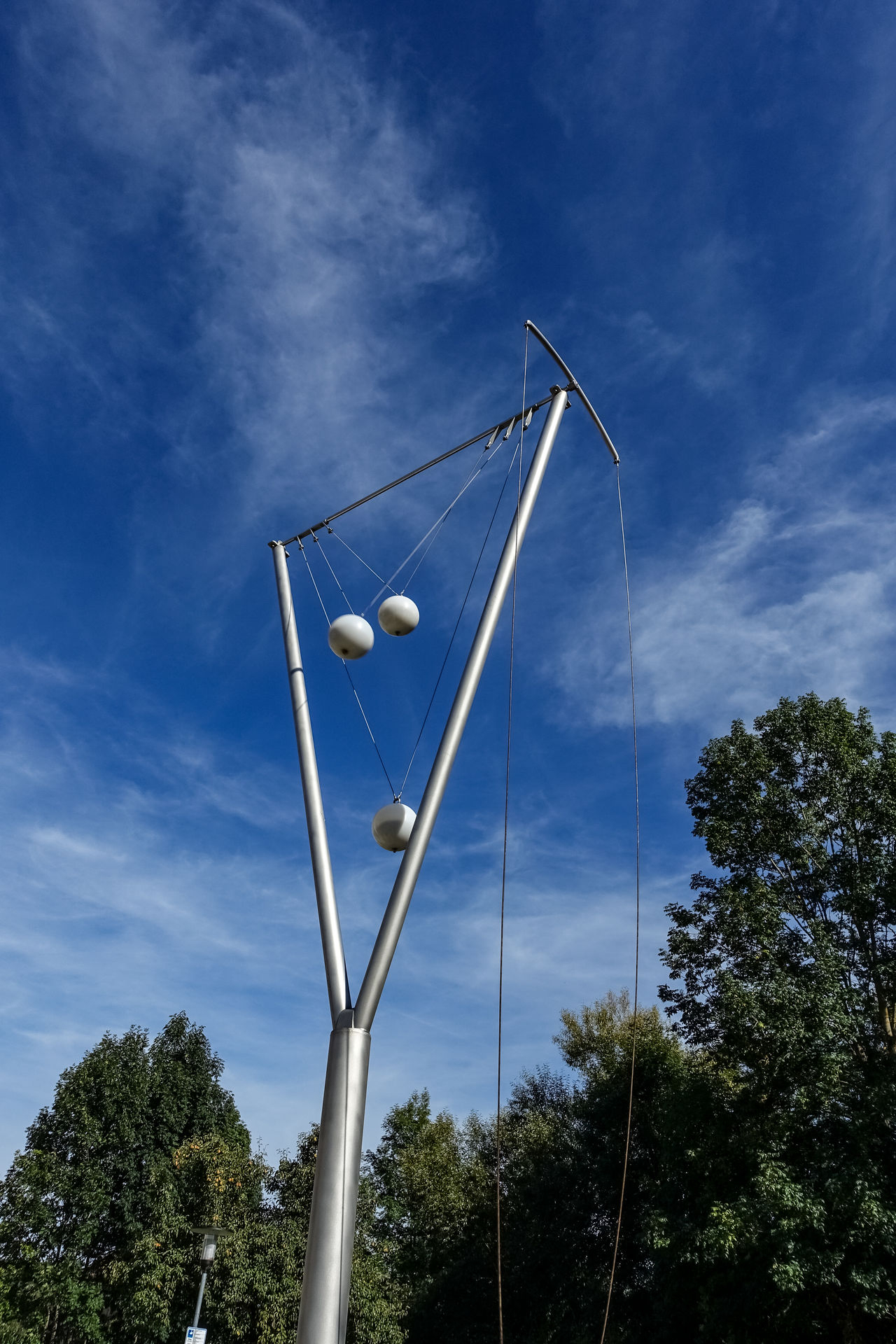

Three pendulums with spherical weights are suspended from a common axis high above the heads of the observers. The axis can be set in motion at any velocity by a rope according to the belfry principle. The correct rhythm for pulling the string and controlling the turning velocity of the axis making the spheres swing one after the other, can be found by careful trial and error. The length of the pendulum arms determines the amount of vibration and has been designed in a way that the result is a harmonic, integral relationship between the vibrations. In the same way that the tones of 3 different bells ringing together results in an accord the spheres also meet repeatedly for a short moment in a vibrational pattern. This moment isespecially fascinating for the observer.
