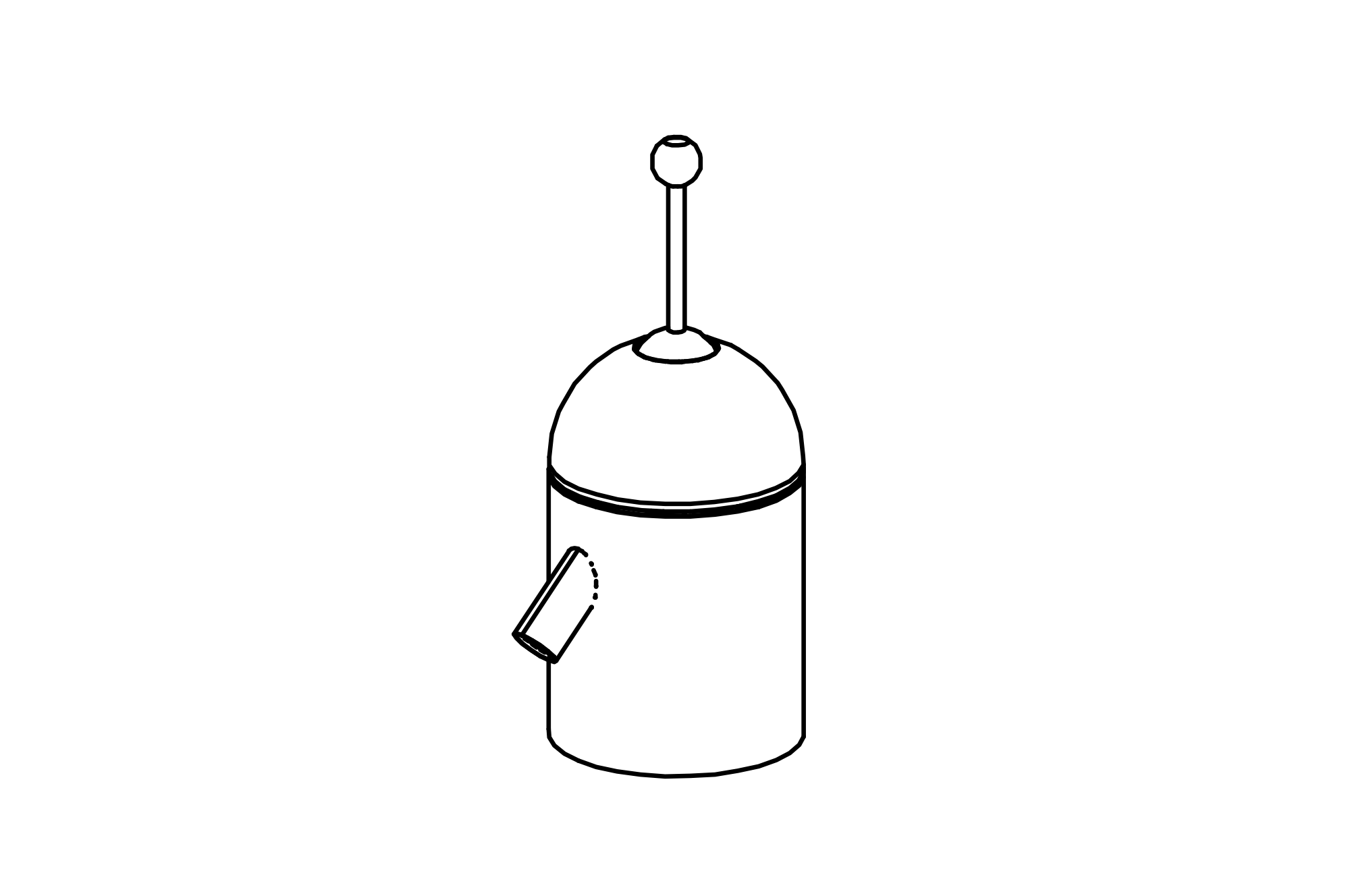

Lever Pump including winter lid, programmable flushing device
Lever Pump including winter lid, programmable flushing deviceLever Pump including winter lid, programmable flushing deviceLever Pump including winter lid, programmable flushing device

Lever Pump including winter lid, programmable flushing device

Devices made of V2A glass bead blasted. High-quality roller bearings made of chrome steel or stainless steel for rotating elements, low-maintenance, easy to replace, sealed. Ball head made of impact-resistant, through-dyed PUR plastic, colour black. Closed design with water valve for direct connection to the pressure line.
Connection thread: 1 inch inside
Pressure-resistant pipe: Ø 3/4 inch
Water requirement: min. 80l/min
Water pressure: 2.5 - 5 bar
Article no.
5.28002

Dimension

Length cm:30
Width cm:40
Height cm:75

Assembly

Floor anchoring:made of steel for screwing on
Play valueImagesCatalogue pageMaintenance manualDWG

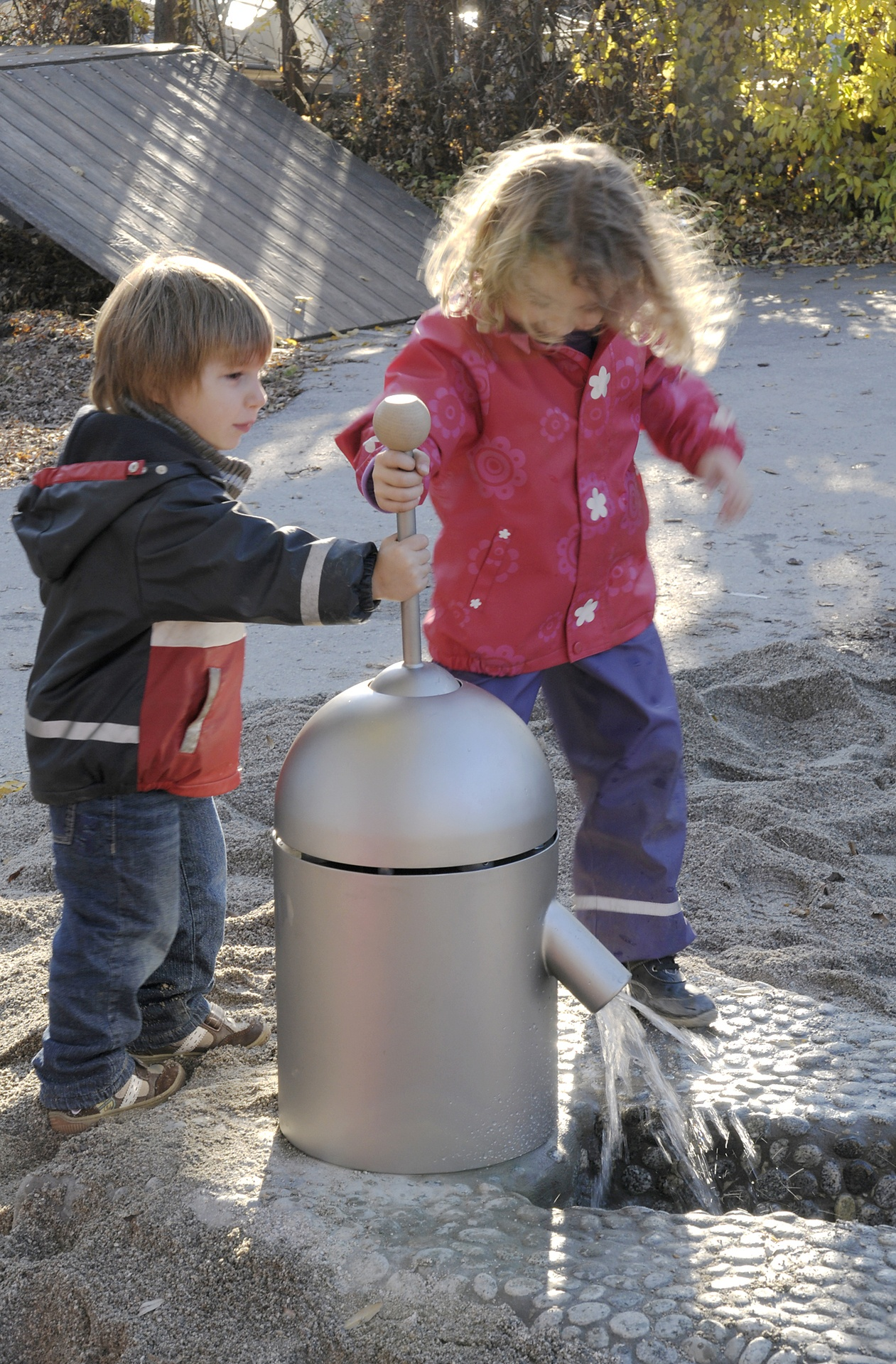

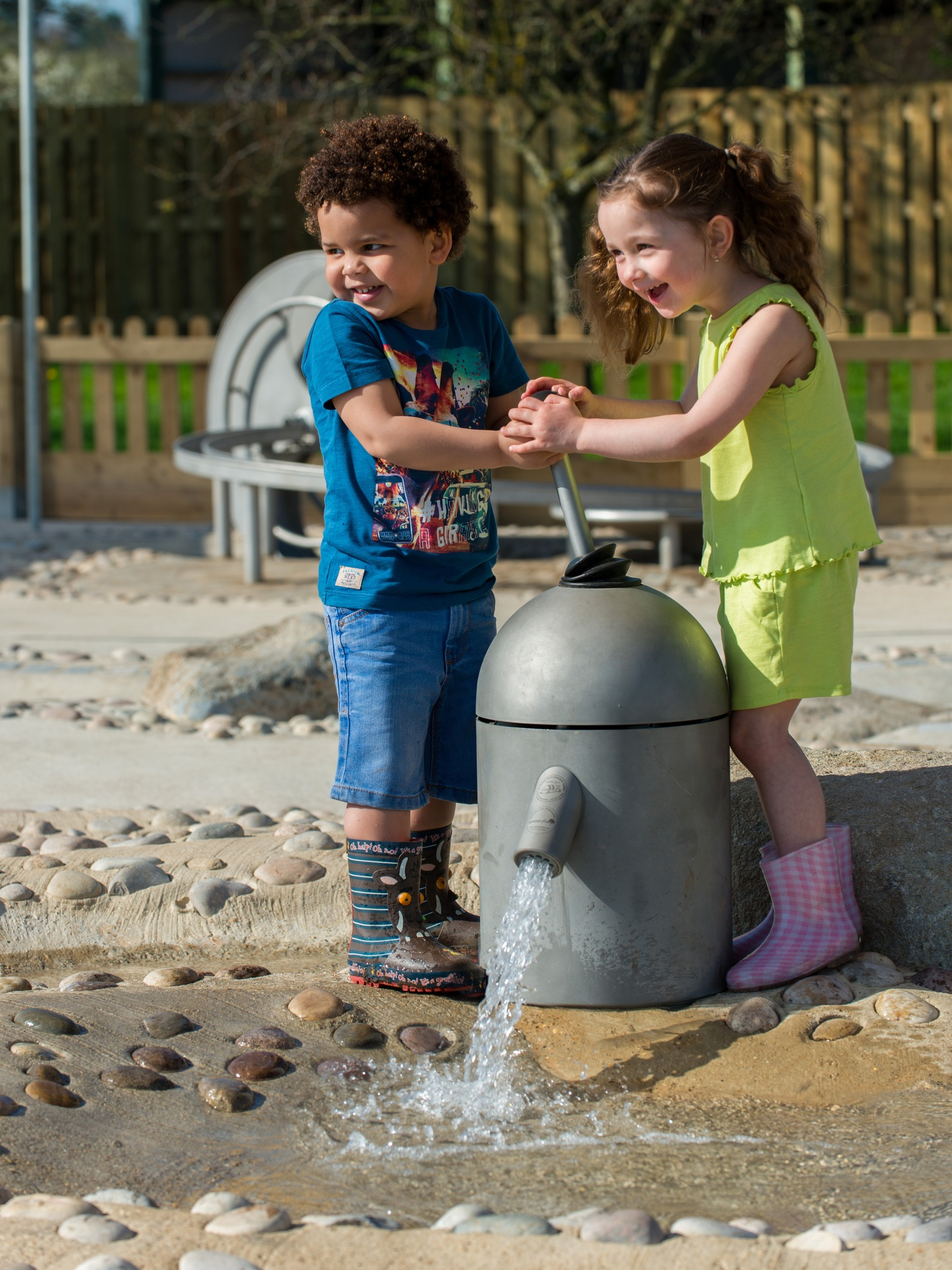

Even small children can operate our lever pump and convey water. The pump resistance as well as the flow rate per stroke can be varied. The design and easy operation make it very suitable for children. Hydraulic oil is pumped in an enclosed circuit. The degree of pumping difficulty can be adjusted to a child’s strength. The flowing hydraulic oil opens the water valve for a short period of time and then automatically – can also be adjusted – closes again. The water is of drinking quality up until the water leaves the valve; there is no residual water left in the pump.
