AQuadrat® Combination 02
Beautifully shaped modular system made of non-impregnated mountain larch, in an elaborate and sophisticated design. Sawn timber heart-separated. Corner joints with dovetails and prongs Gutters made of V2A, glass bead blasted Functional elements made of V2A, glass bead blasted, rubber wedge made of industrial rubber.
Water dispenser made of V2A with self-resetting pressure valve.
Pump capacity: adjustable 1-50’; up to 20 litres per release
Connection pipe: 3/4 inch (device 3/4 inch inside)
Water requirement: min. 15 litres/min
Water pressure: 2.5 - 5 bar
Water dispenser made of V2A with self-resetting pressure valve.
Pump capacity: adjustable 1-50’; up to 20 litres per release
Connection pipe: 3/4 inch (device 3/4 inch inside)
Water requirement: min. 15 litres/min
Water pressure: 2.5 - 5 bar
Article no.
5.50002
Dimension
Length cm:600
Width cm:600
Height cm:92
Assembly
Floor anchoring:made of steel for casting

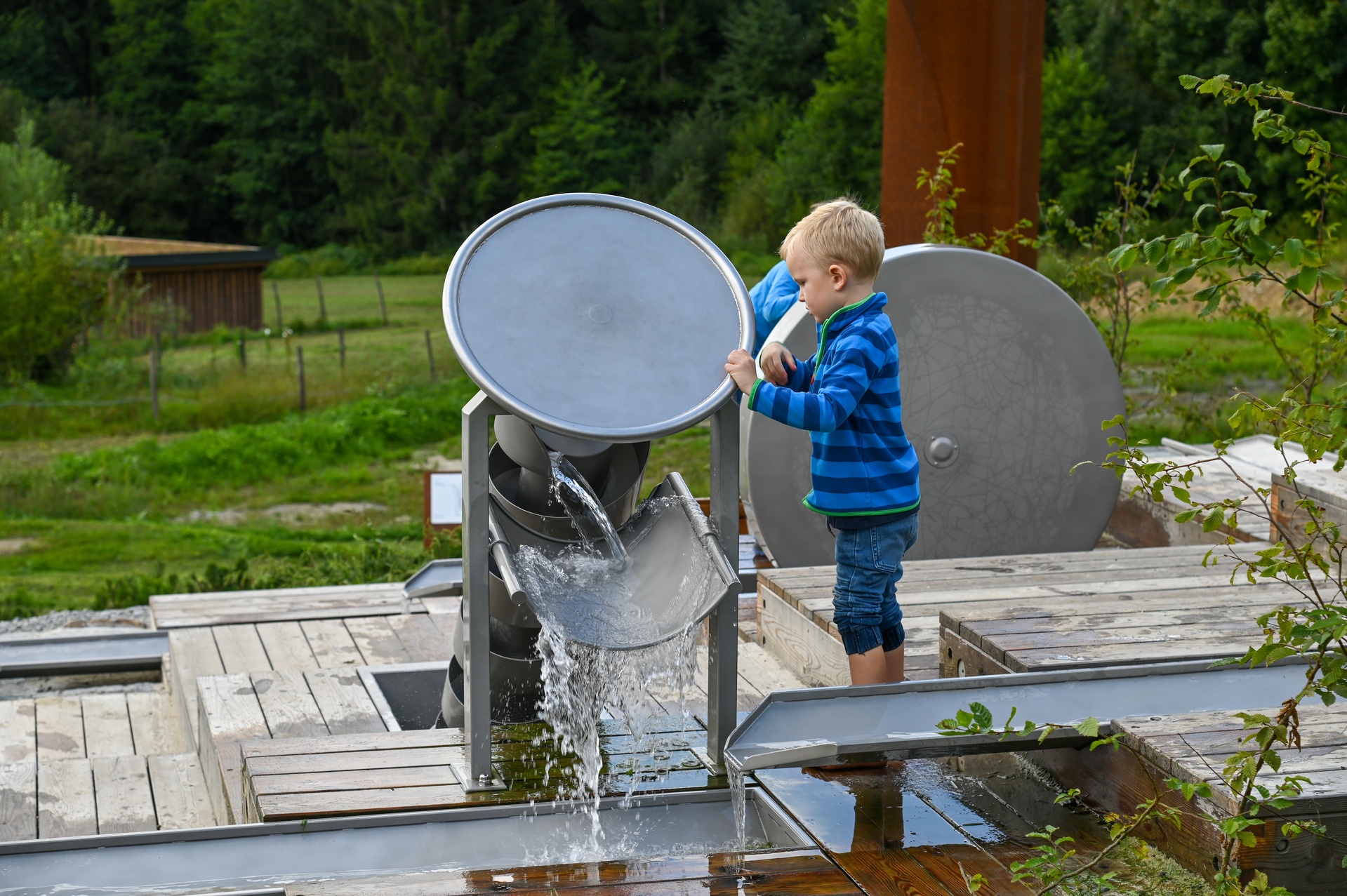

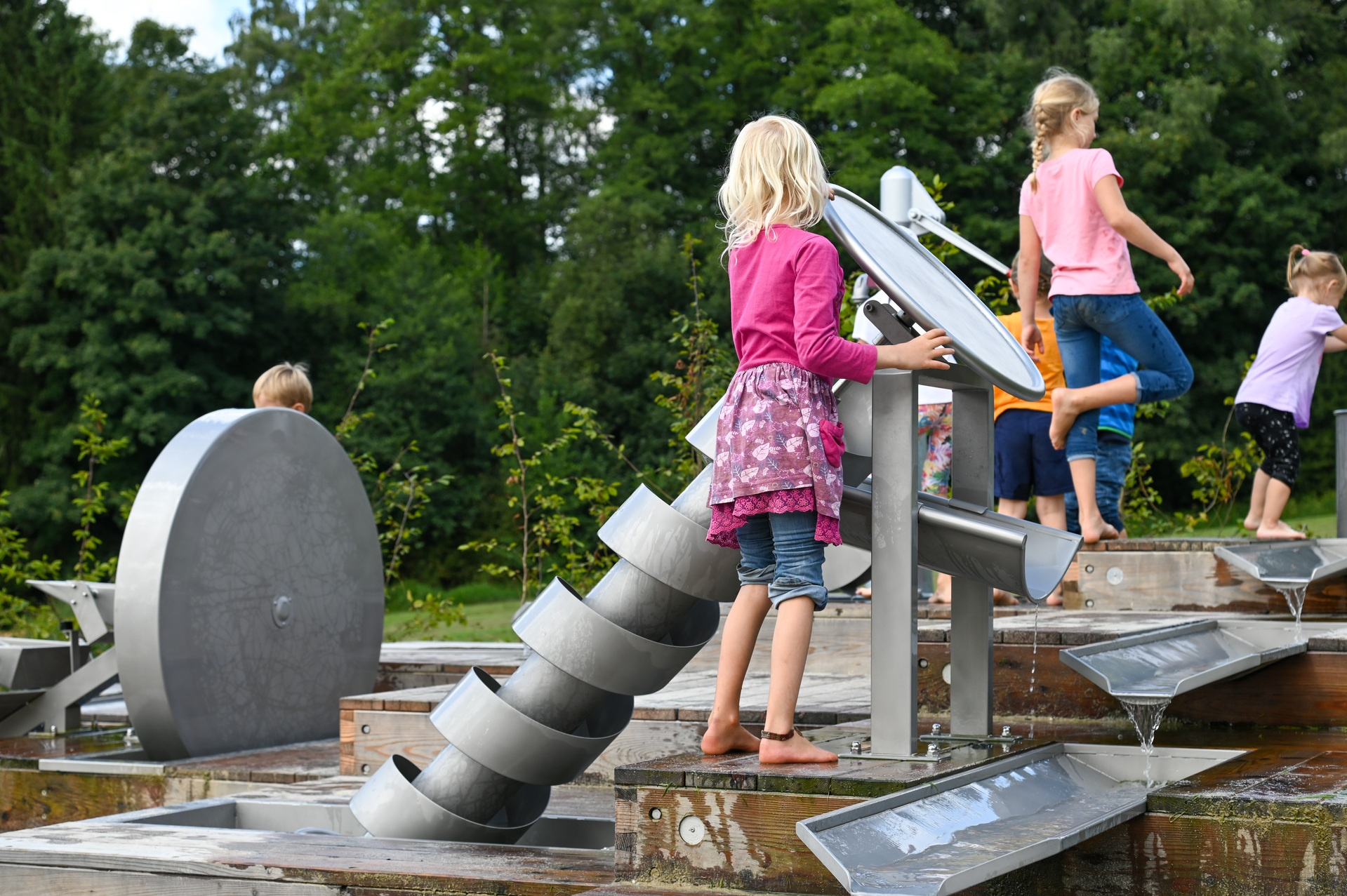

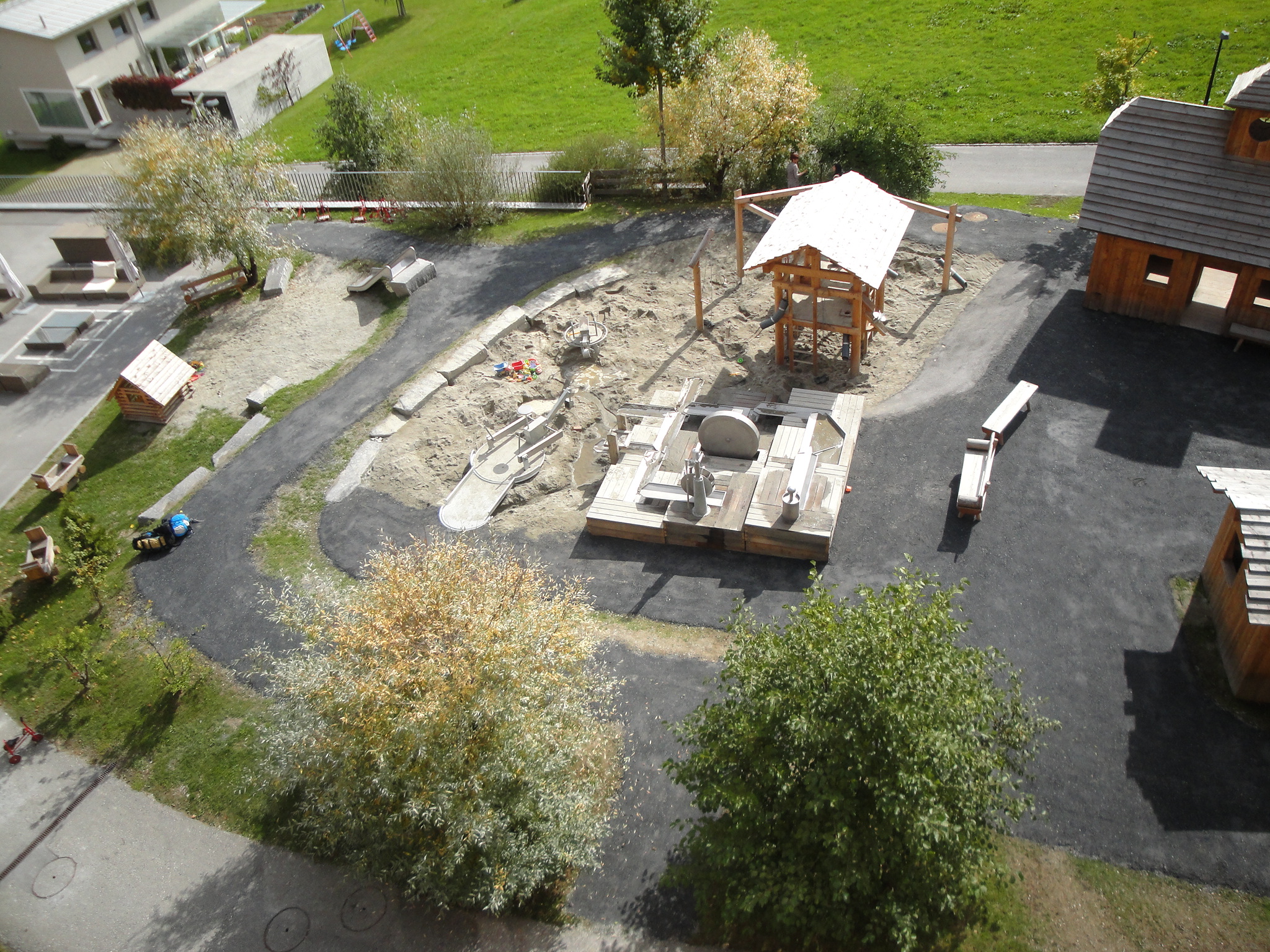

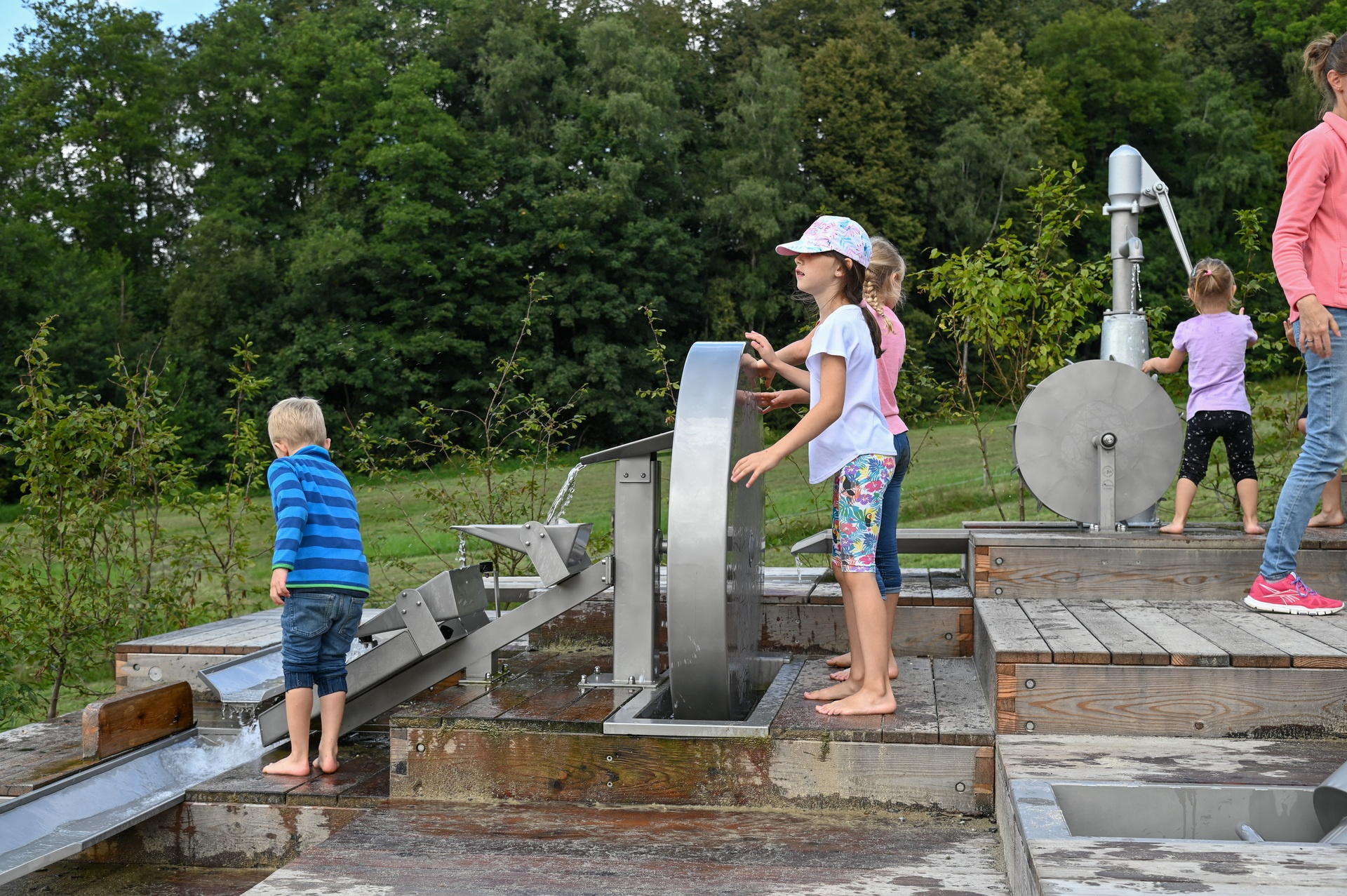

The water play installation AQuadrat® isa flexible modular system made of solid oak timber. Due to its design qualities, it can be installed in pedestrian zones, streets and piazzas. Here, AQuadrat® is not only an attractive meeting point with unusual seats, it offers „clean“ play and adventure for children with water in surroundings unfamiliar for playing. AQuadrat® enriches urban life. On the other hand, due to its sturdy construction and many possibilities for combination with Archimedes Screws, Water Wheels or Pumps, AQuadrat® is also an attractive play offer in water-mud-areas on playgrounds.
