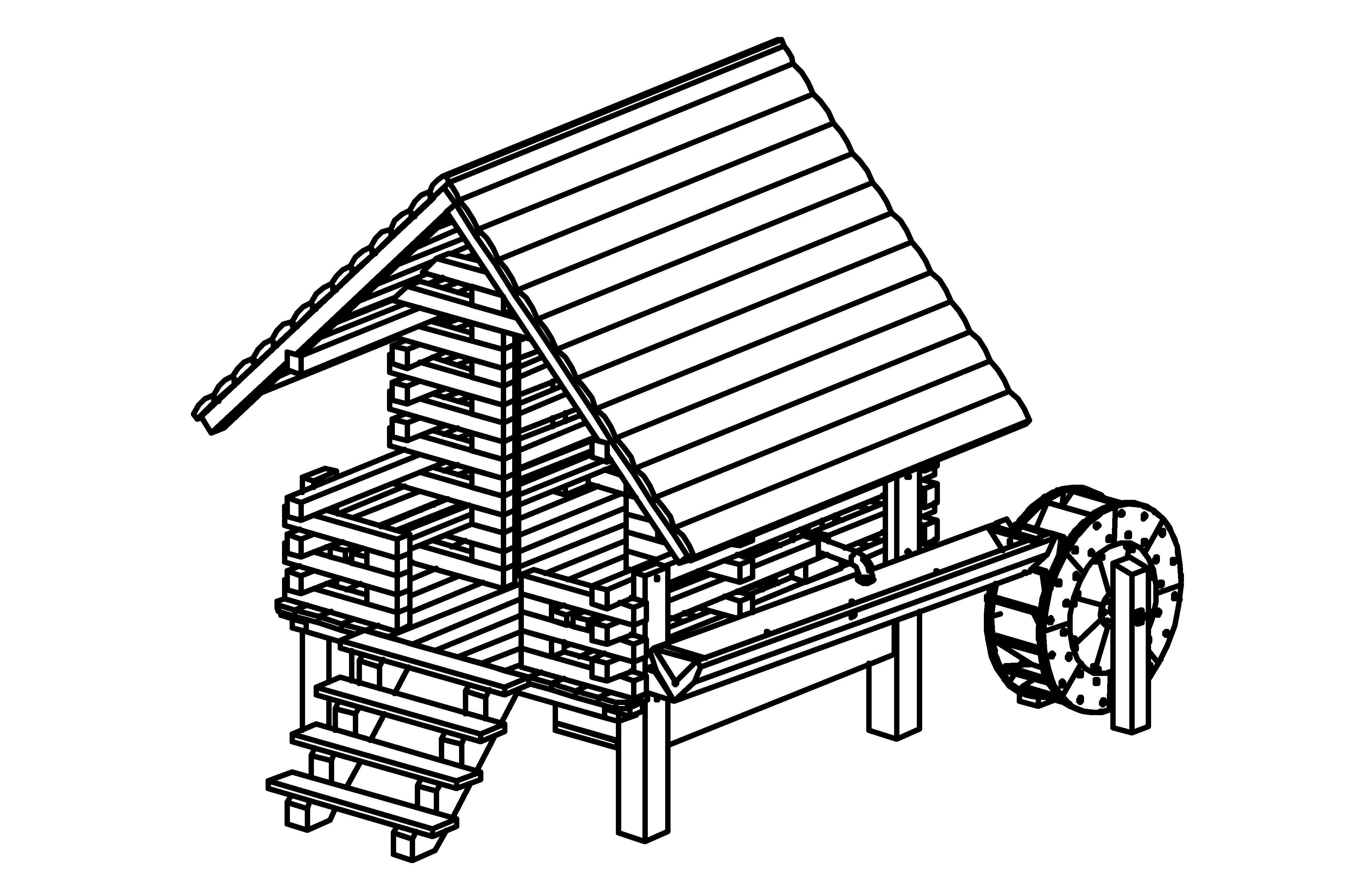

Mill House, height 250 cm
Appliance made of non-impregnated mountain larch, sawn timber heart-cut. Rinds (4-5 cm) white-peeled by hand, natural tree surface remains tangible and tactile. Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling through. Steps made of 32 mm hardwood. High-quality roller bearings made of chrome steel or stainless steel for rotating elements, low-maintenance, easy to replace, sealed. Handcrafted water wheel construction with grooved and slotted wooden connections Shaft, hub and wheel tyres made of V2A, glass bead blasted. Closed design piston suction pump. Built into the column is the valve combination for direct connection to a pressurised water pipe, a shut-off valve with backflow preventer type EA and drain. Drinking water up to the lower edge of the pump base.
Water outlet height: 92 cm
Pumping capacity: approx. 0.3 l/revolution
Connection pipe: 1 inch
Water requirement: approx. 18 l/min
Water pressure: min. 2.5 bar, max. 6 bar
Water outlet: no drinking water
Water outlet height: 92 cm
Pumping capacity: approx. 0.3 l/revolution
Connection pipe: 1 inch
Water requirement: approx. 18 l/min
Water pressure: min. 2.5 bar, max. 6 bar
Water outlet: no drinking water
Article no.
5.09700
Dimension
Length cm:345
Width cm:215
Height cm:250
Falling space
Length cm:550
Width cm:470
Height cm:100
Assembly
Floor anchoring:made of steel for casting

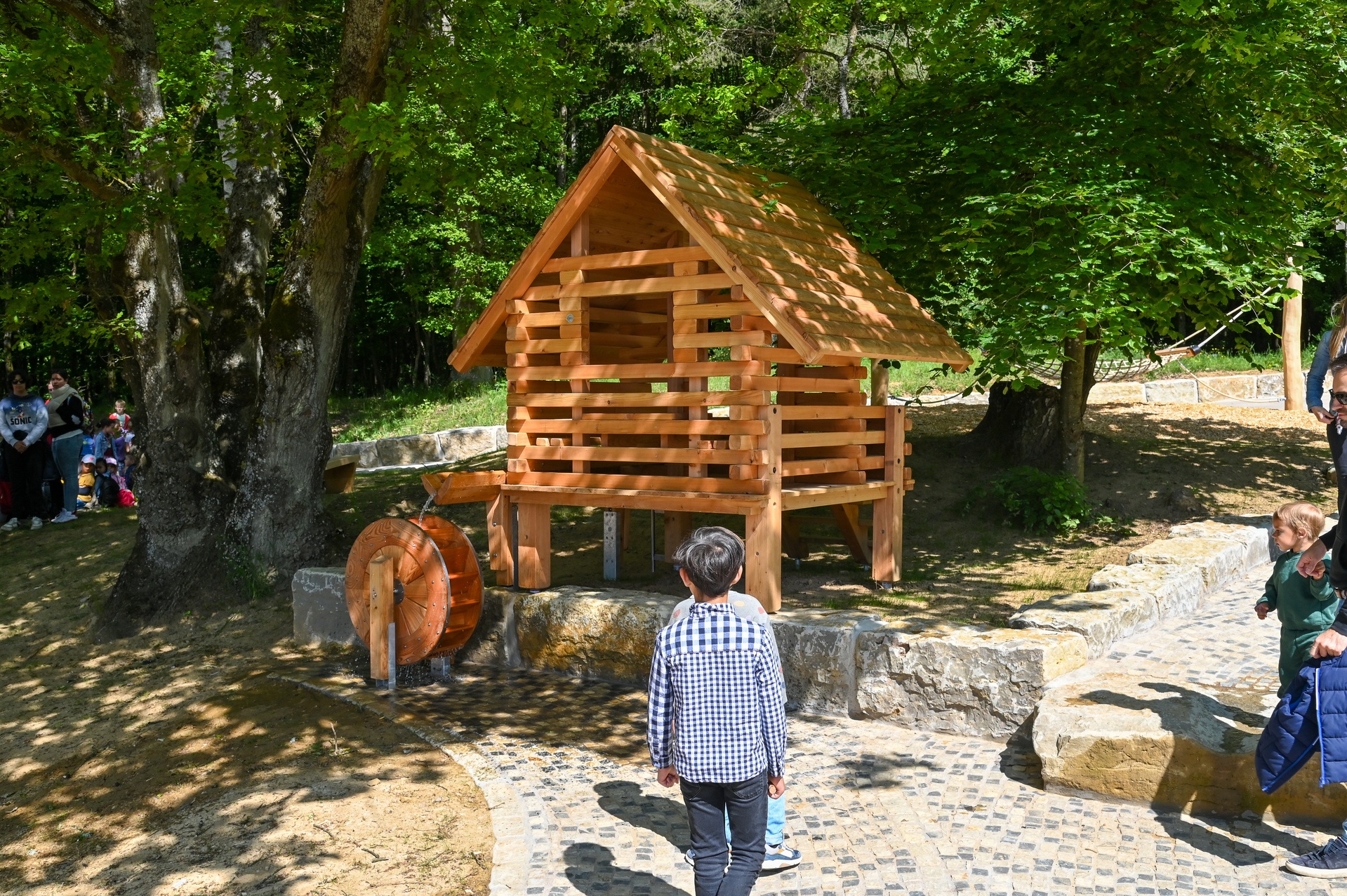

The Mill House creatively combines our popular Stilt House, our Crank Handle Pump, a wooden channel and our wooden Mill Wheel. This unique combination creates a Mill House with a particularly high play value. It offers a versatile, adaptable space that can be harmoniously integrated with a variety of terrains and opens numerous discovery and play opportunities for children. Central to the play is a fully functioning mill wheel, which is set in motion by pumping water using our Crank Handle Pump and a wooden channel. Children can independently guide water into the channel and watch how it drives the Mill Wheel. This way, they discover the exciting effect of water on mechanical movements in a playful way. Our Mill House not only encourages individual play, but also interaction between children. Playing with the water in the Mill Wheel and channel encourages children to work together: they must decide how much water they need to get the shutter to open and the mill wheel to turn. This process requires communication, teamwork and joint problemsolving, which strengthens the children‘s social skills and promotes an awareness of cooperation and responsibility.
