Fish Berta
Unit made of non-impregnated mountain larch, sawn timber heart-separated. Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling through. Climbing rungs made of hardwood (ash) Ø 4.2 cm, milled, mortised, secured against twisting. Richter hercules rope, Ø > 20 mm, made of galvanised six-strand steel ropes, covered and glued with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. Slide made of V2A, side walls glass bead blasted, slide plate thickness 3 mm, handrail tube Ø 42 mm, thickness 2 mm. Professional climbing grips made of a sand/resin mixture with a safe anti-rotation system to prevent unintentional twisting of the grips. Coloured with solvent-free acrylic paint.
Article no.
4.90010
Dimension
Length cm:690
Width cm:400
Height cm:290
Falling space
Length cm:1040
Width cm:690
Height cm:150
Assembly
Floor anchoring:made of steel for casting

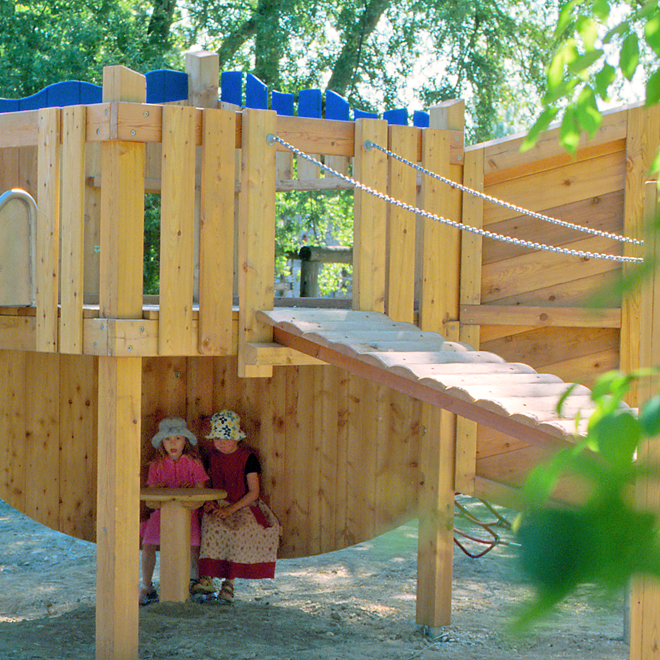

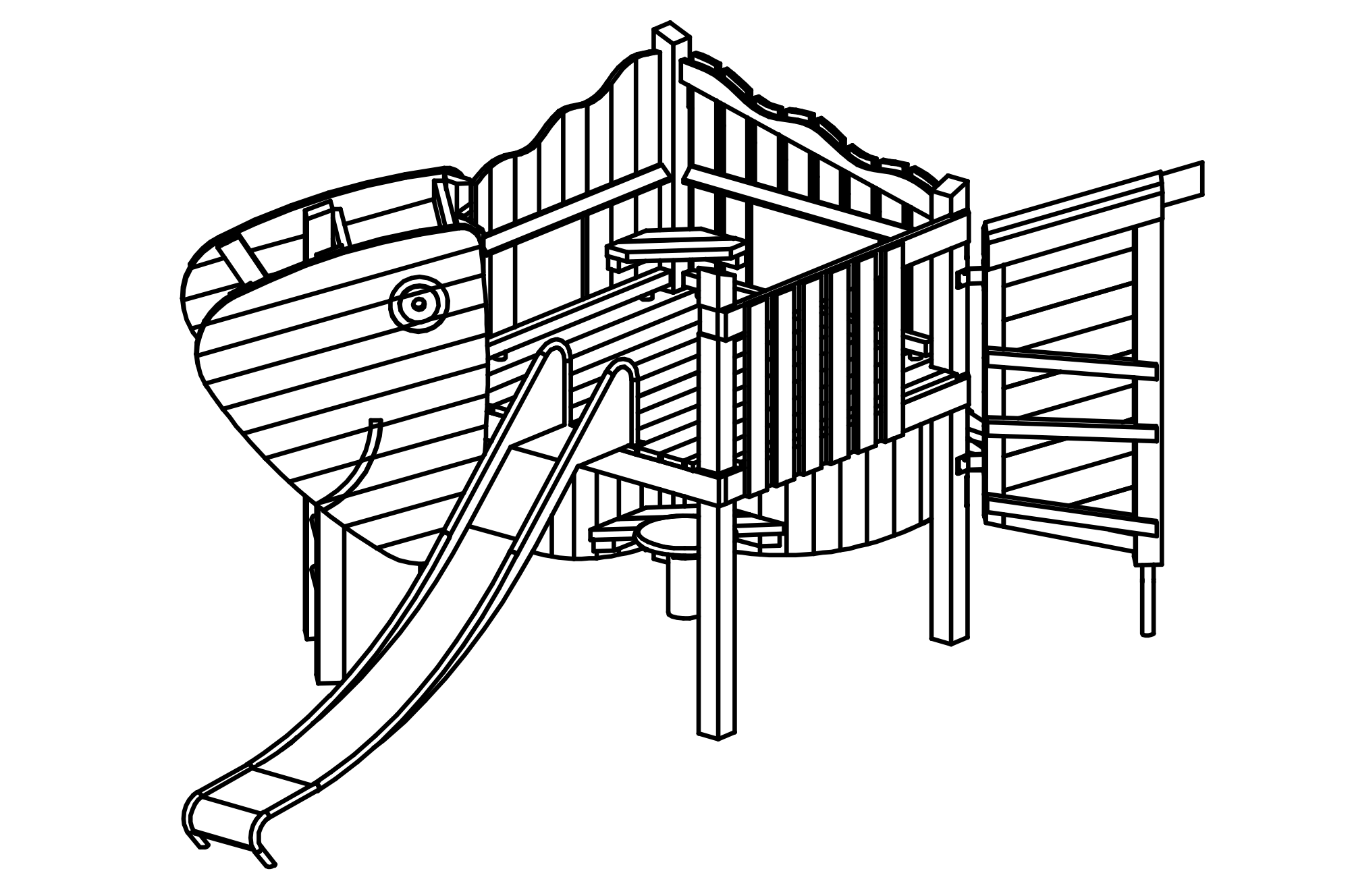

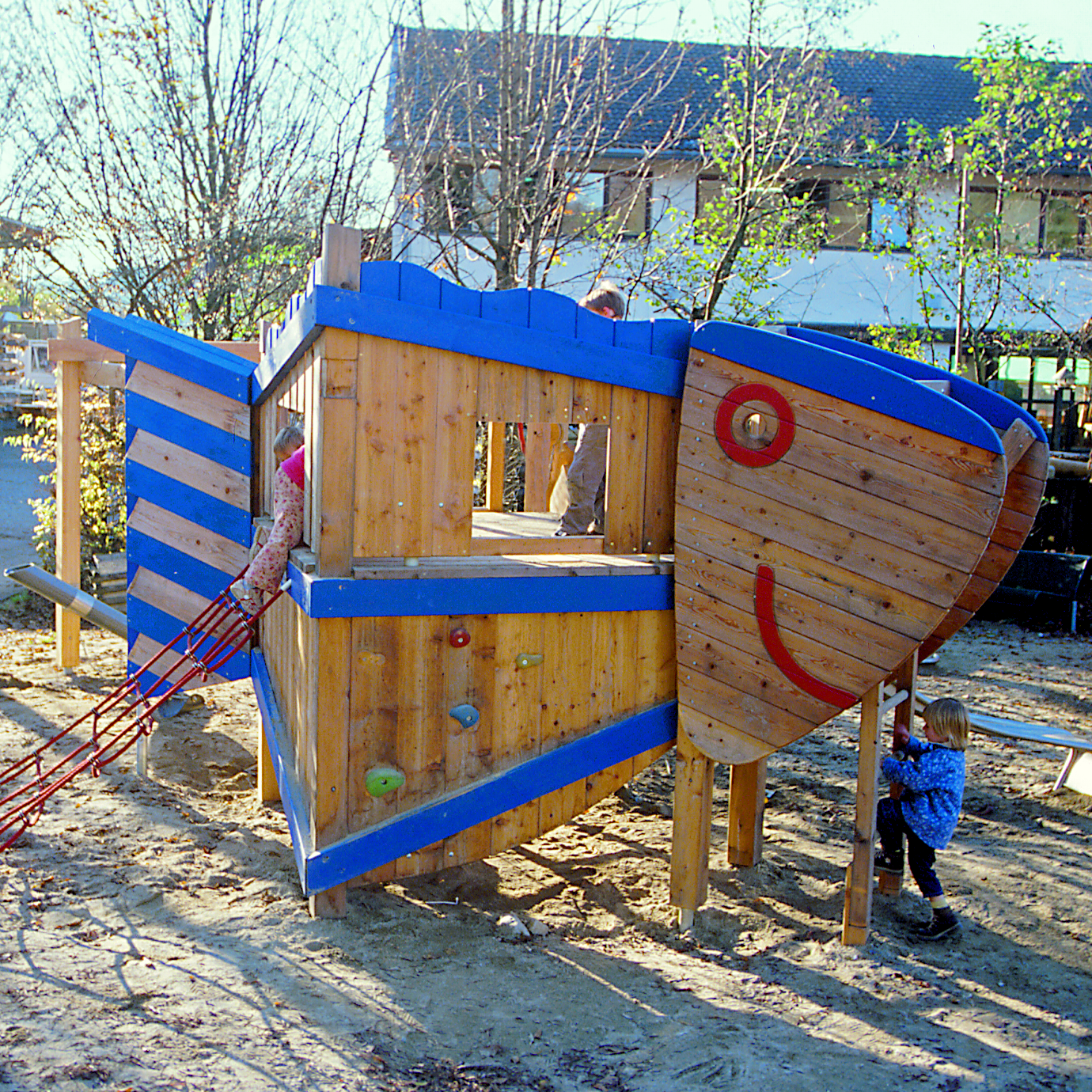

The shape of a play equipment is one of the main factors giving children the necessary stimulus for active play. By an attractive design, children become aware of the play offer. A friendly look creates a pleasant atmosphere and invites children to play. Fish Berta has an amiable appearance in the shape of a fish which provides a special attraction to the play area. The net and climbing grips, which stick like shells to one side of the structure, emphasize the look of a sea animal which can become the centre of a play area. Fish Berta offers play opportunities inside the structure and has a climbing net and a slide in the basis version. In addition, a central means of access through the fish body can be installed by a rope ladder in place of the small round table.
