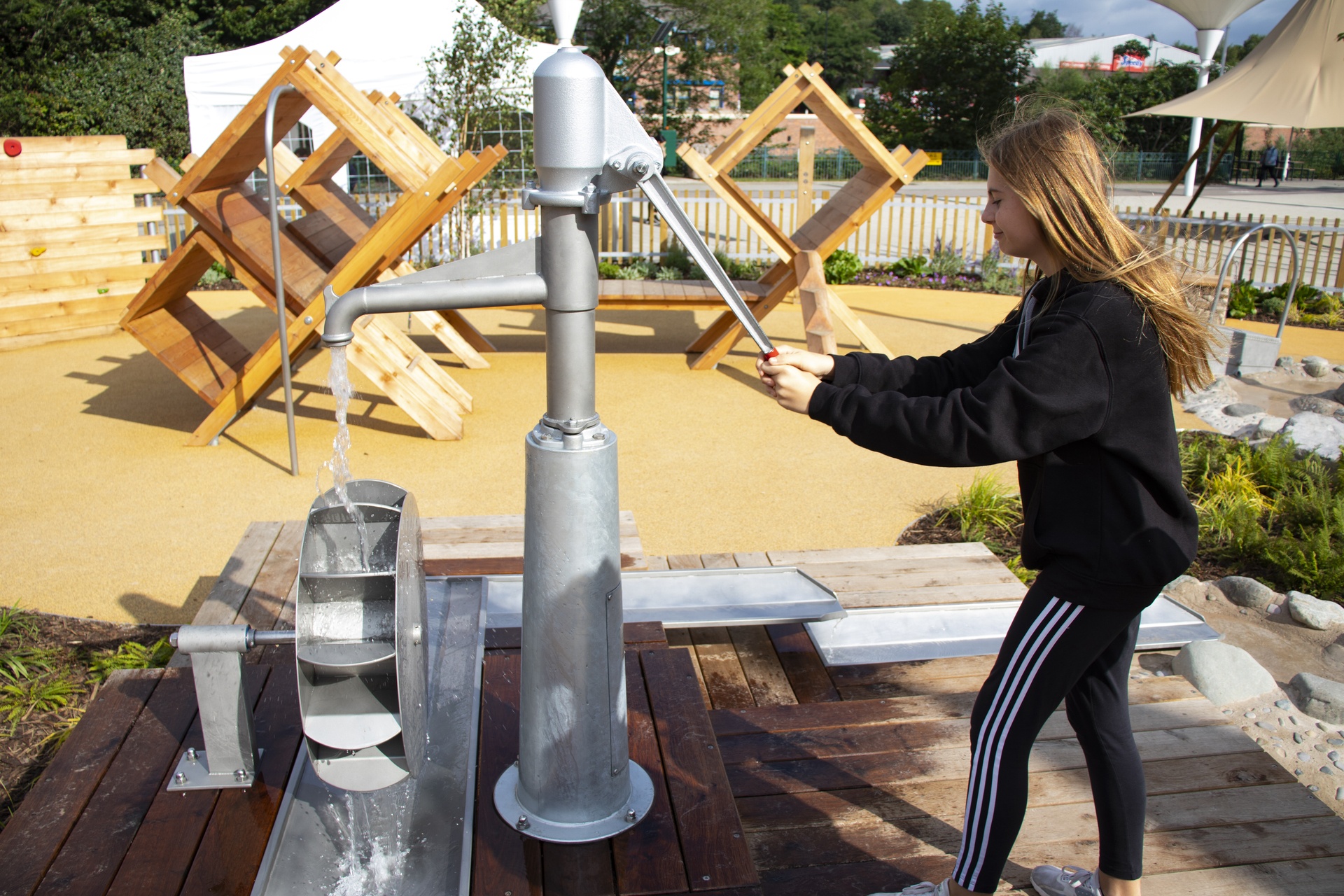

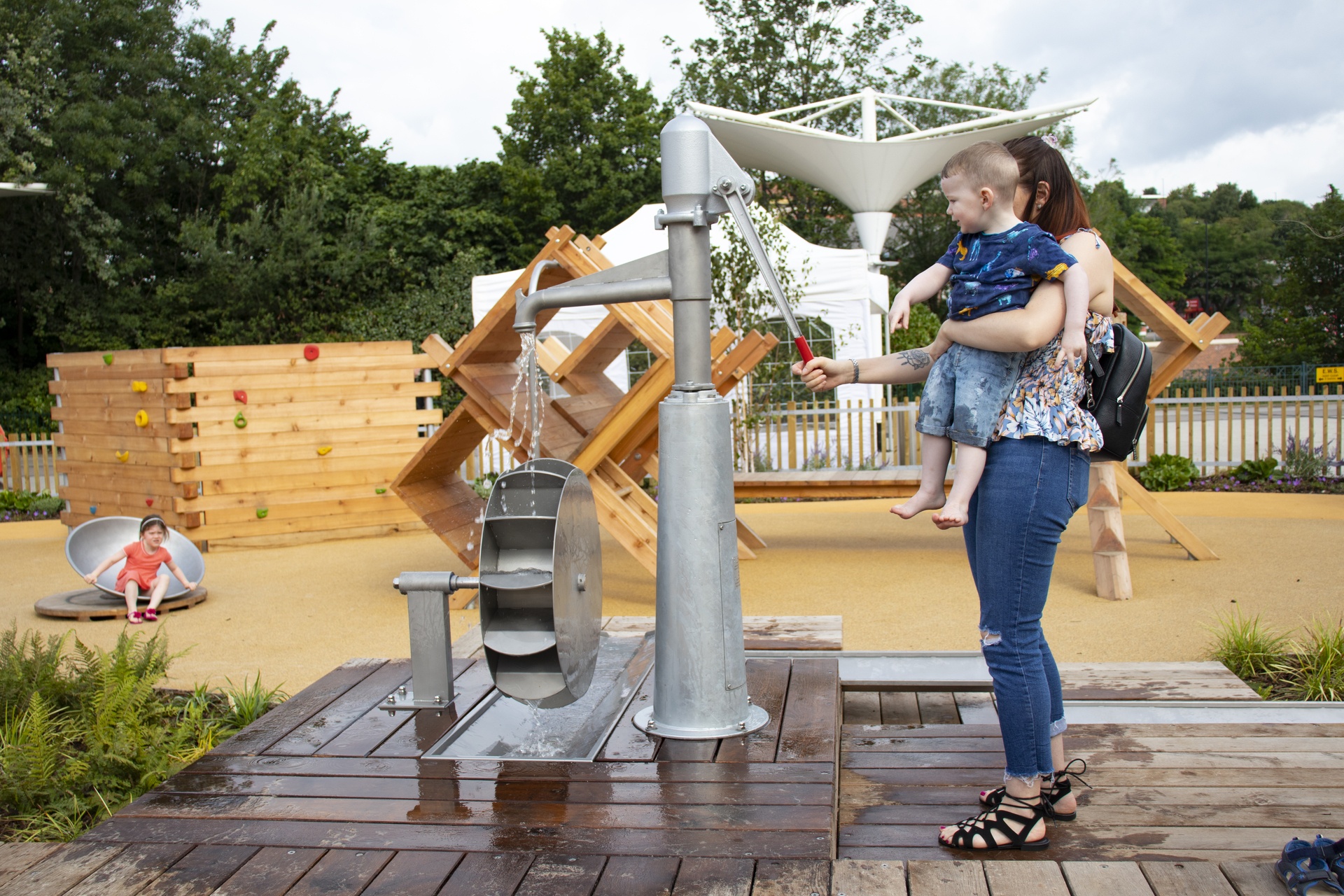

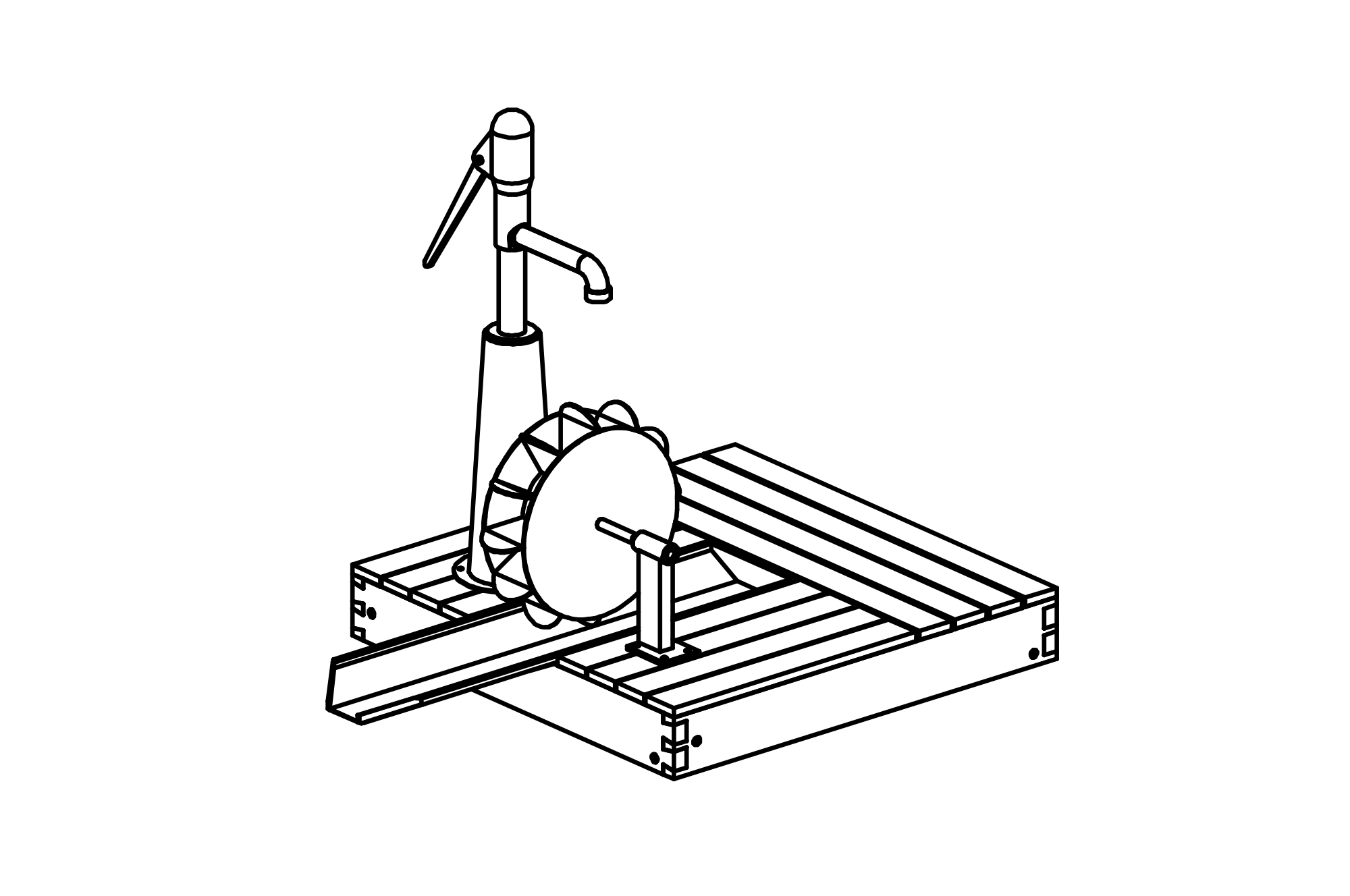

AQuadrat® with pump (5.17632) and mill wheel
Units made of non-impregnated mountain larch, sawn timber heart-cut, corner joints with dovetails and prongs. Gutters and functional elements made of V2A glass bead blasted, flaps made of industrial rubber.
Playground pump 5.17632:
Playground pump 5.17632:
Water outlet height: 104 cm
Width with horizontal swivel arm: 95 cm
Pumping capacity: approx. 0.75 l/stroke
Connection pipe: 1 inch
Water requirement: min. 45 l/min
Water pressure: min. 2.5 bar, max. 6 bar
Water outlet: no drinking water
Width with horizontal swivel arm: 95 cm
Pumping capacity: approx. 0.75 l/stroke
Connection pipe: 1 inch
Water requirement: min. 45 l/min
Water pressure: min. 2.5 bar, max. 6 bar
Water outlet: no drinking water
Article no.
5.53200
Dimension
Length cm:215
Width cm:150
Height cm:175
Floor height cm:23
Assembly
Floor anchoring:made of steel for casting
The water play installation AQuadrat® isa flexible modular system made of solid oak timber. Due to its design qualities, it can be installed in pedestrian zones, streets and piazzas. Here, AQuadrat® is not only an attractive meeting point with unusual seats, it offers „clean“ play and adventure for children with water in surroundings unfamiliar for playing. AQuadrat® enriches urban life. On the other hand, due to its sturdy construction and many possibilities for combination with Archimedes Screws, Water Wheels or Pumps, AQuadrat® is also an attractive play offer in water-mud-areas on playgrounds.
