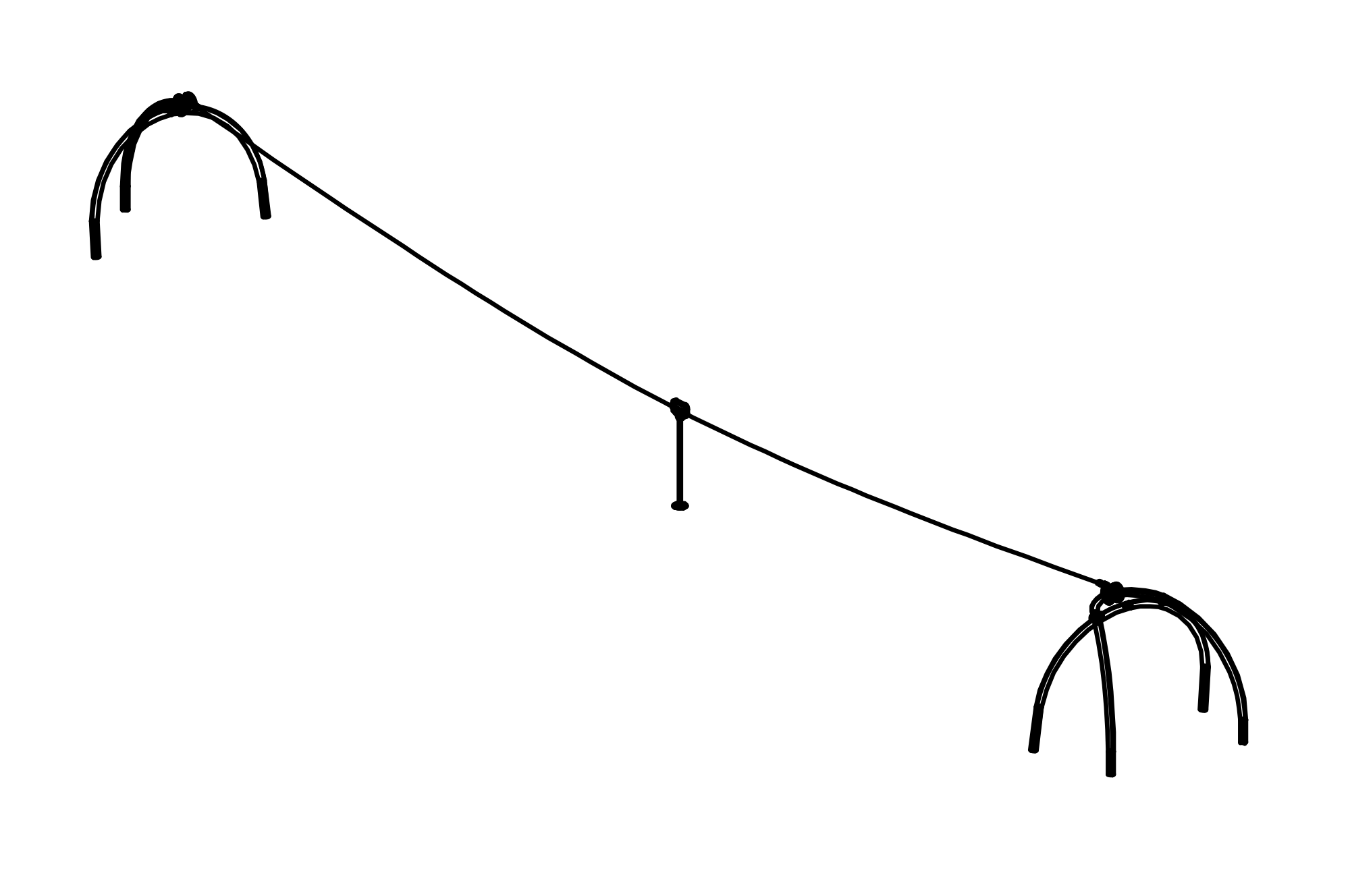

Grand Arch Cableway up to 30 m
Devices made of V2A glass bead blasted. Swivel seat with soft bumper edge and steel insert. Swing joint, hot-dip galvanised, with sintered metal plain bearing and integrated swivel. Back and forth movements with sintered metal plain bearing, self-lubricating. Our ropeway trolley is designed as a sandwich construction. The ‘encapsulated’ running mechanism ensures sound-insulated running. The carriage can be installed without dismantling the rope. Chains made of V2A or V4A with high corrosion resistance, short links, without eyelets on the connecting parts, easily replaceable and simple to shorten.
Article no.
6.01110
Dimension
Length cm:3420
Width cm:395
Height cm:285
Falling space
Length cm:3540
Width cm:470
Height cm:100
Assembly
Floor anchoring:made of steel for casting

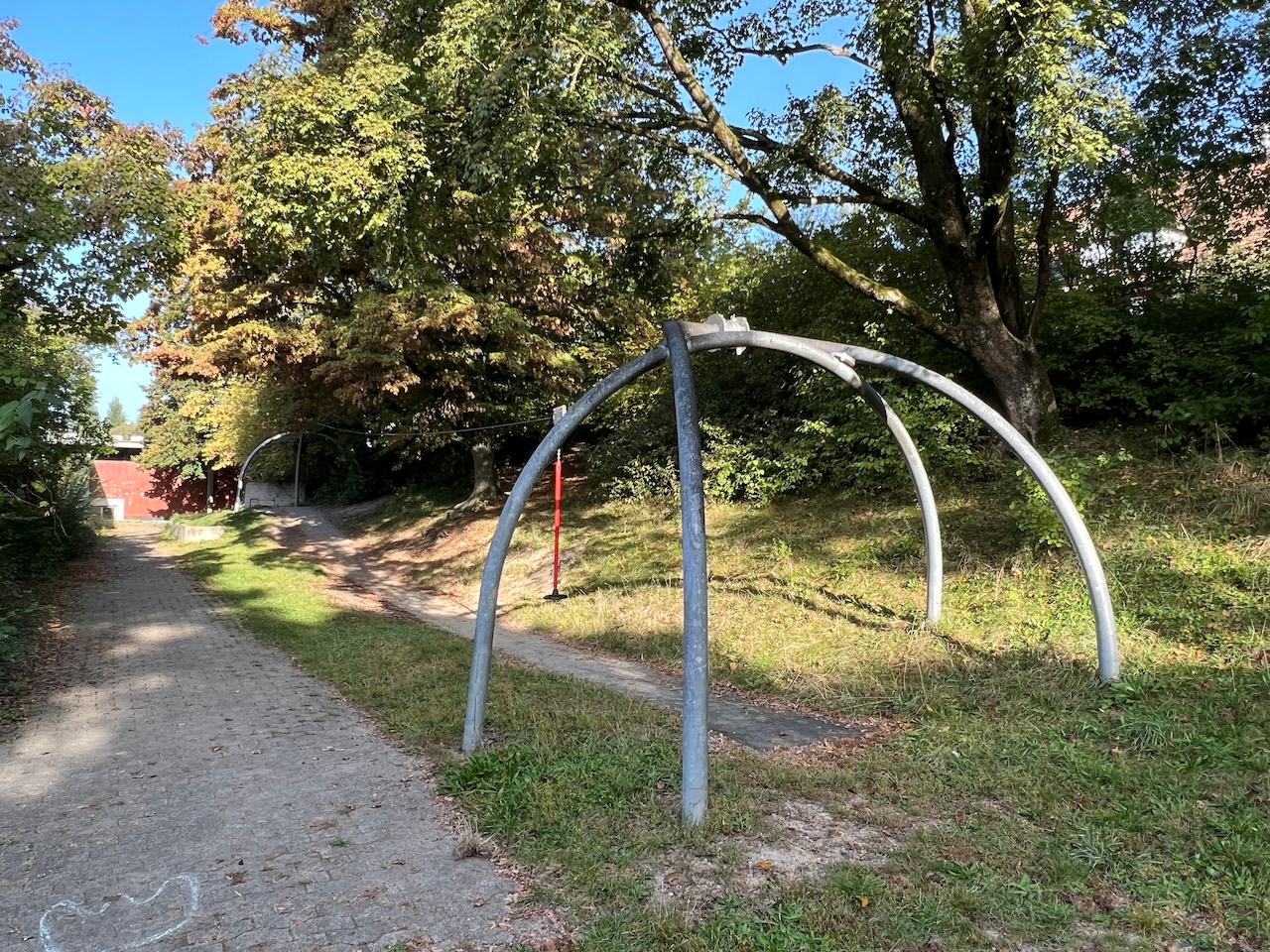

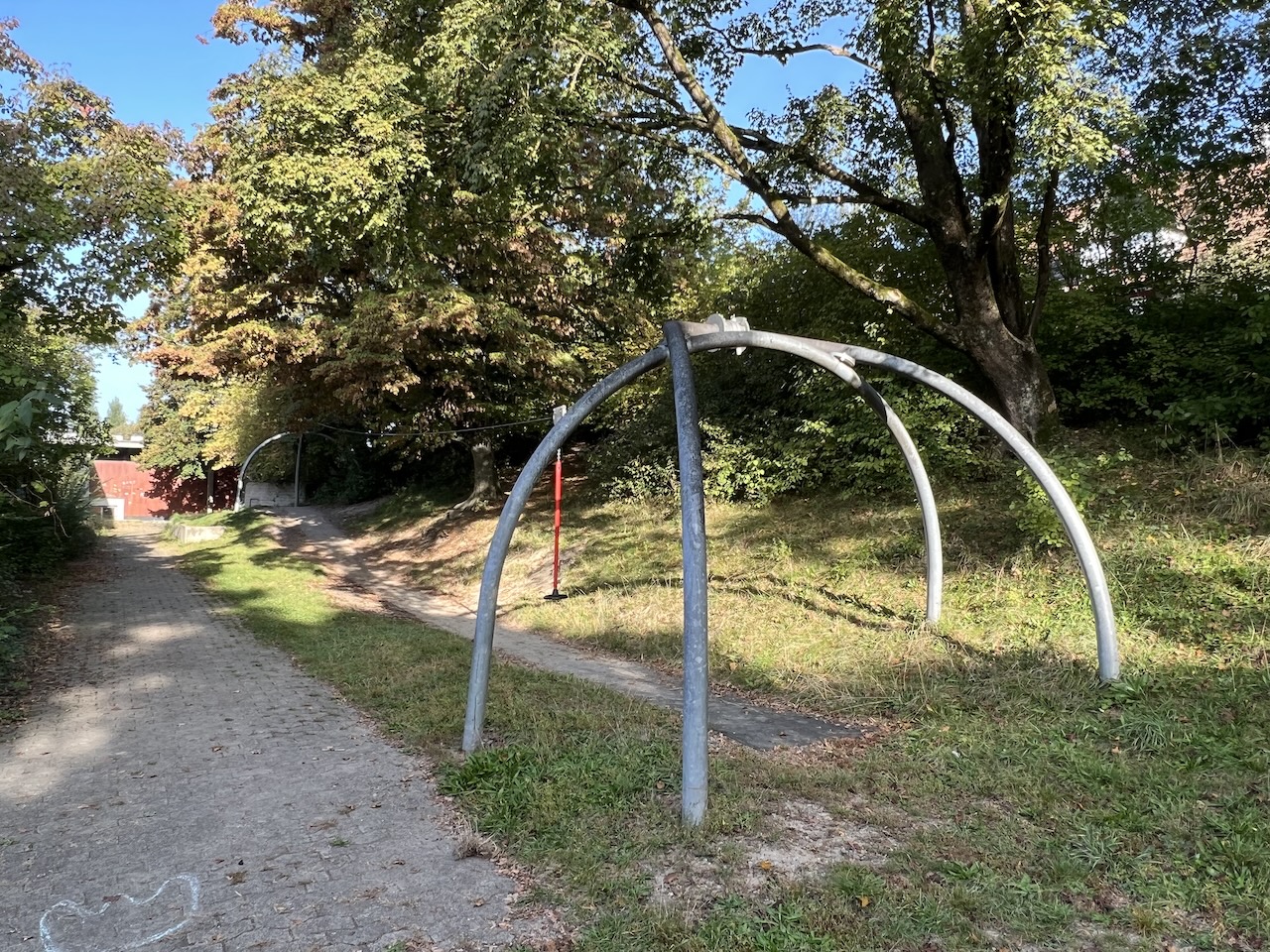

The well-designed metal gates of the Grand Arch Cableway are an eye-catcher with high attraction. The silver-grey posts can be lacquered if required. The feeling of speed, riding and whizzing from one station to the other affords great pleasure for younger and older children alike. The way the cable is suspended enables acceleration without the need for a run-up or pushing, and the shape of the gate enables riding to the end. The incline of the cable slows down the ride.
