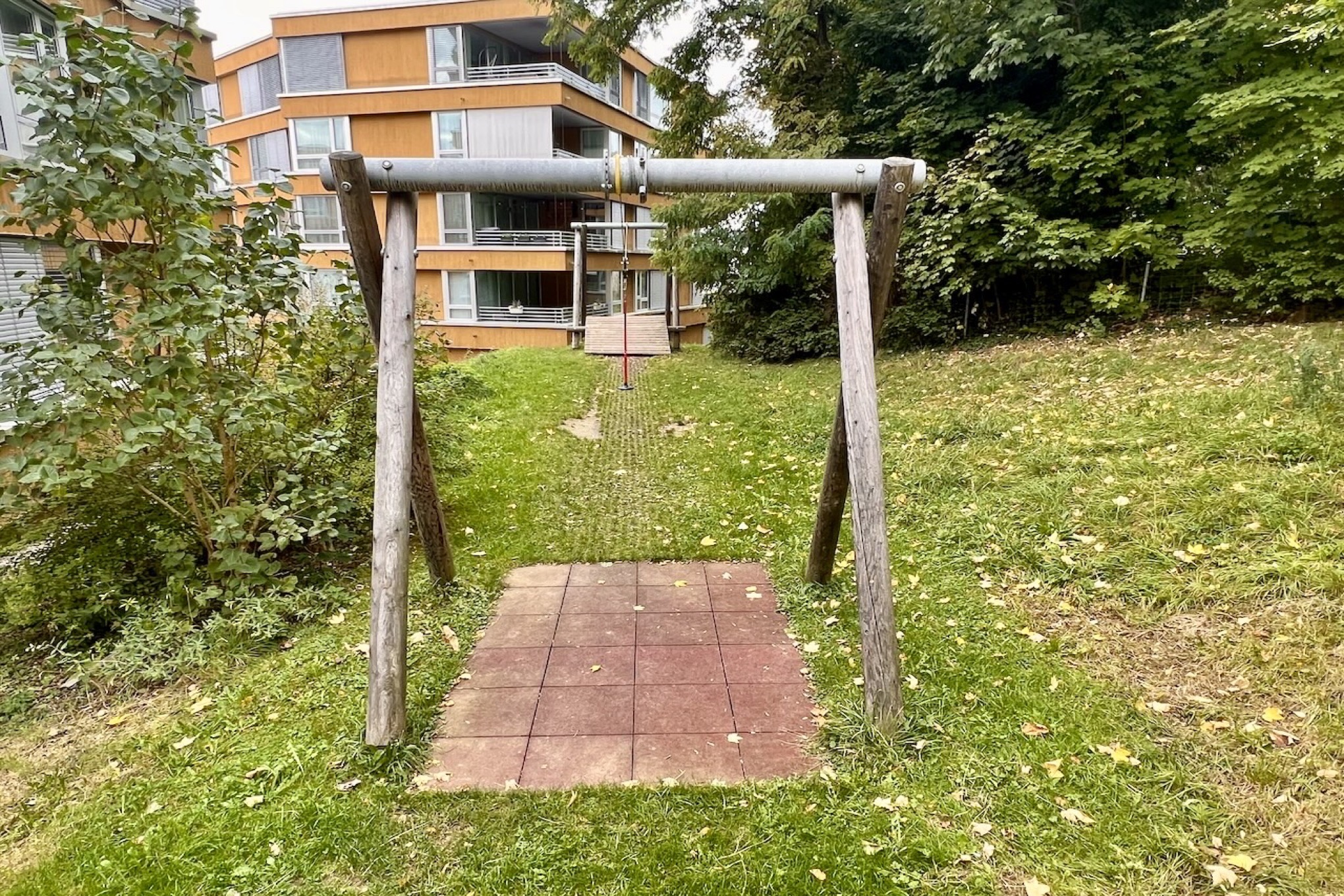

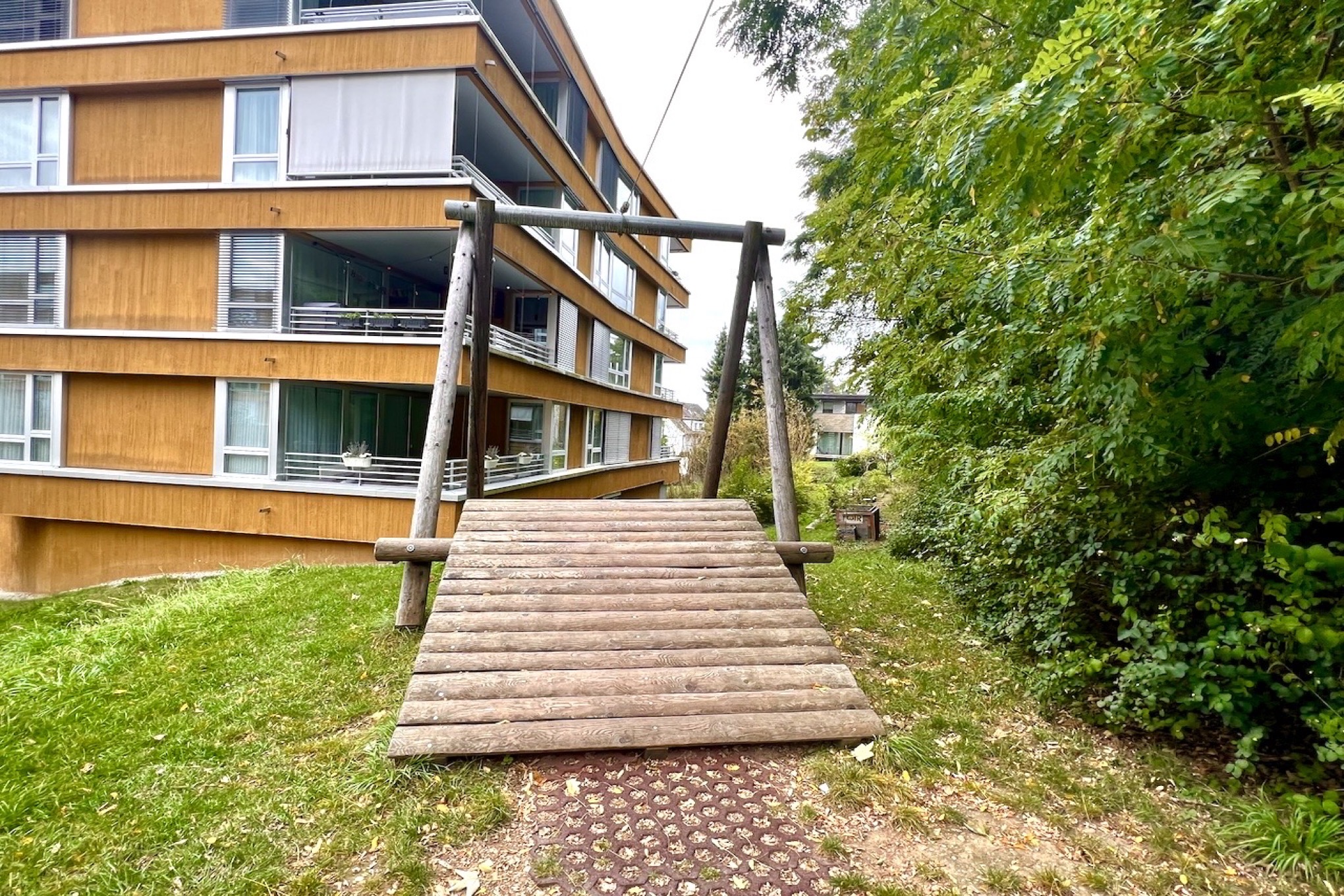

Cableway with ramp, up to 30 m
Device made of non-impregnated mountain larch, rinds (4-5 cm) white-peeled by hand, natural tree surface remains tangible and tactile. Swing seat with soft bumper edge and steel insert. Swing joint, hot-dip galvanised, with sintered metal plain bearing and integrated swivel. Back and forth movements with sintered metal plain bearing, self-lubricating. Our ropeway trolley is designed as a sandwich construction. The ‘encapsulated’ running mechanism ensures sound-insulated running. The carriage can be installed without dismantling the rope. Chains made of hot-dip galvanised steel (V2A / V4A for an extra charge) welded before galvanising, short-linked, without eyelets on the connecting parts, easily replaceable and easy to shorten.
Article no.
L6.01050
Dimension
Length cm:3260
Width cm:300
Height cm:380
Falling space
Length cm:3350
Width cm:400
Height cm:100
Assembly
Floor anchoring:made of steel for casting
The Cableway is a mobile piece of equipment which is enjoyed by many age groups. The feeling of speed, riding and whizzing from one station to the other affords great pleasure for younger and older children alike. The way the cable is suspended between the two ends enables acceleration without the need for a run-up or pushing, and the shape of the gate enables riding to the end. In this equipment, the incline of the cable slows down the ride. The agreeably designed wooden stations are an eye-catcher with a high attraction.
