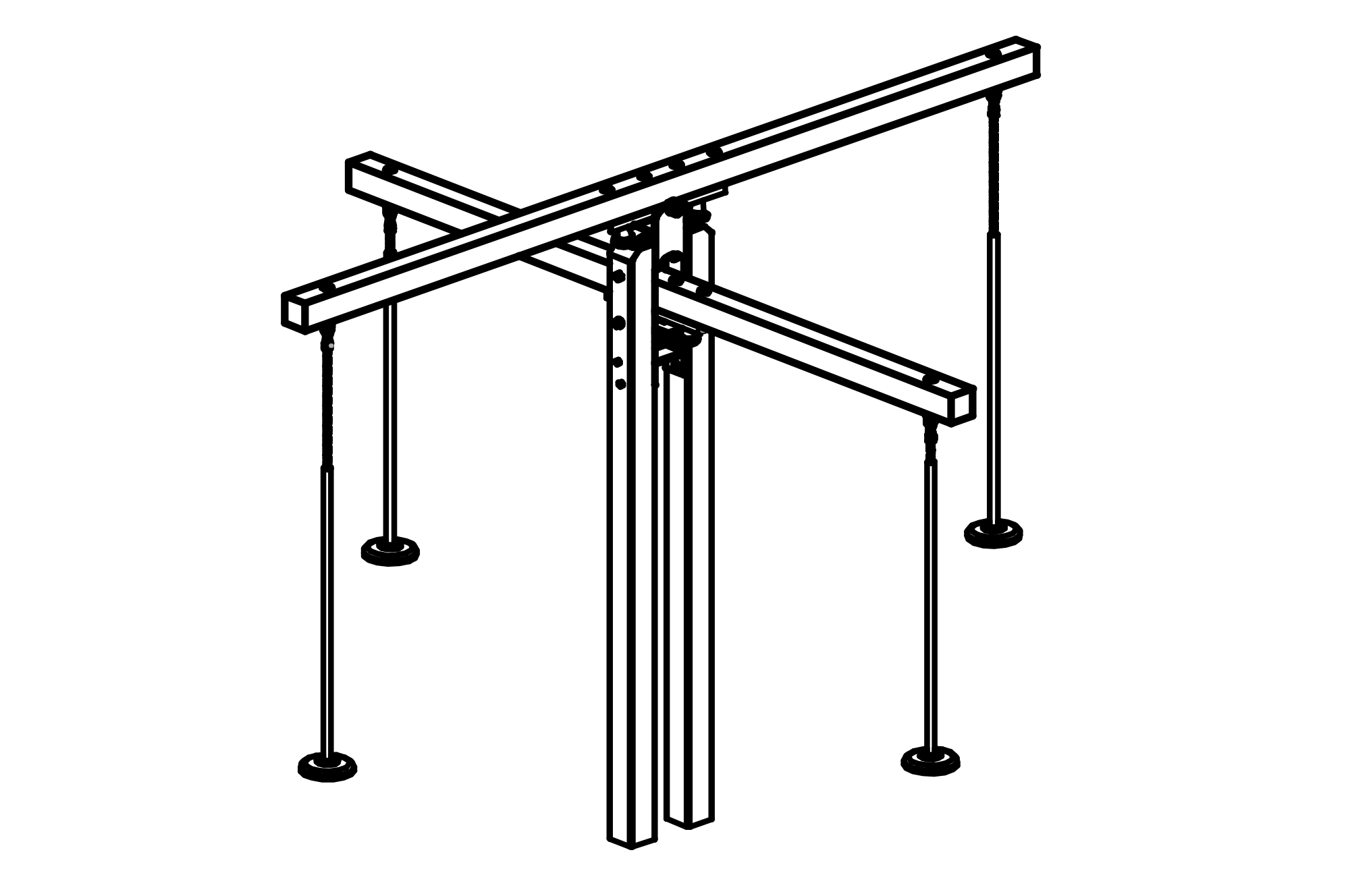

Cross Scales with steel posts
Units made of V2A glass bead blasted. Crossbeam made of non-impregnated mountain larch. Swivel seat with soft bumper edge and steel insert. Cardan joint, hot-dip galvanised, consists of two sintered metal plain bearings, allows free swinging in all directions. Profiled disc for optimum pressure distribution and protection against water ingress. Retractable two-part screws. Back and forth movements with sintered metal plain bearings, self-lubricating. Hot-dip galvanised steel chains (V2A / V4A at extra cost) welded before galvanising, short-linked, without eyelets on the connecting parts, easy to replace and shorten.
Article no.
6.10101
Dimension
Length cm:450
Width cm:390
Height cm:320
Falling space
Length cm:880
Width cm:770
Height cm:200
Assembly
Floor anchoring:made of steel for casting

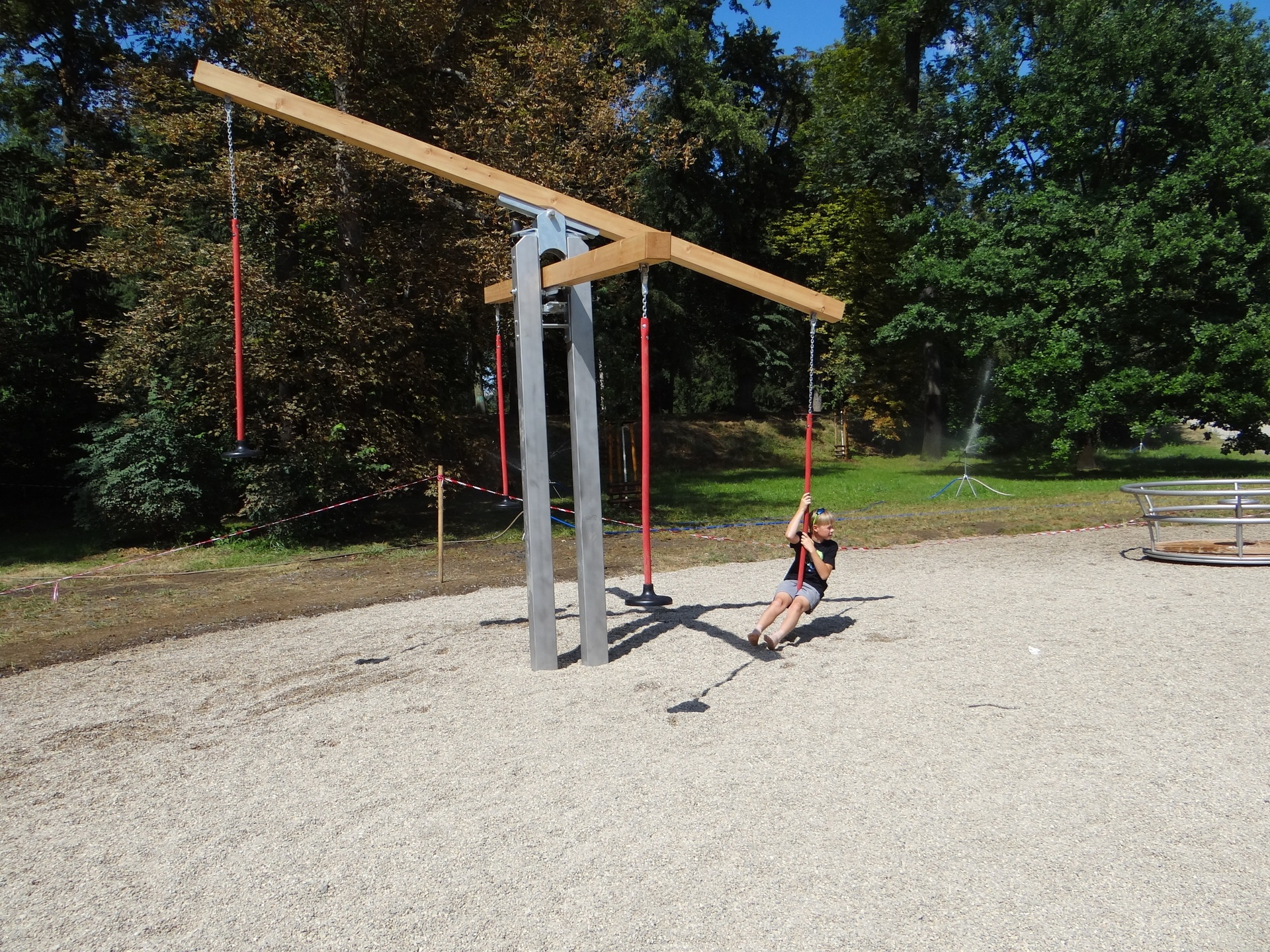

Effectively, the Cross Scales is a raised see-saw with hanging seats. The up and down movement can be carried-out with a slight spring to it or with full force. At the same time, a hard bump is damped by means of a mechanical spring system. Sideways swinging and even swinging in small circles is possible while sitting on the long hanging pendulum seats. The Cross Scales encourage communication and cooperation.
