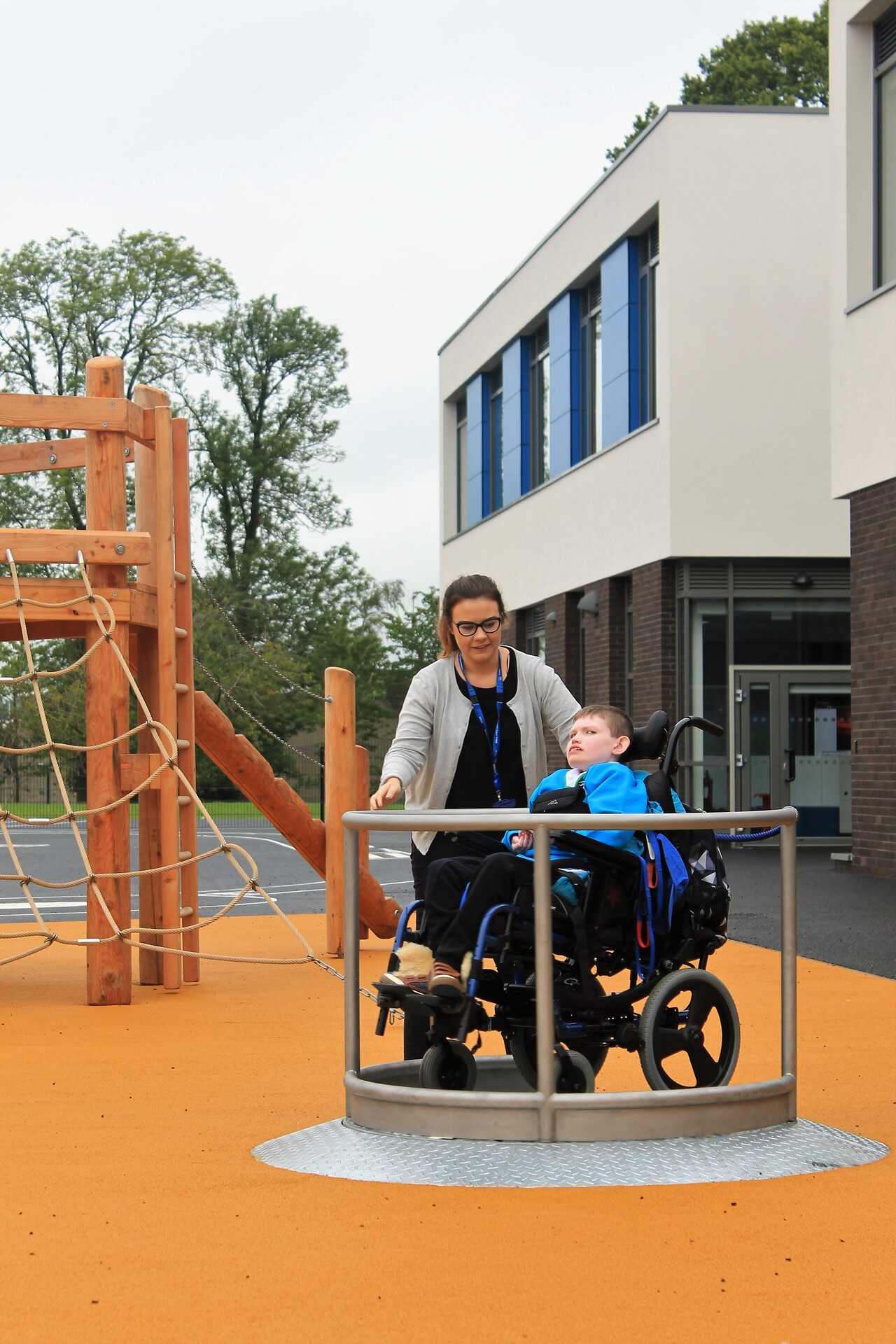

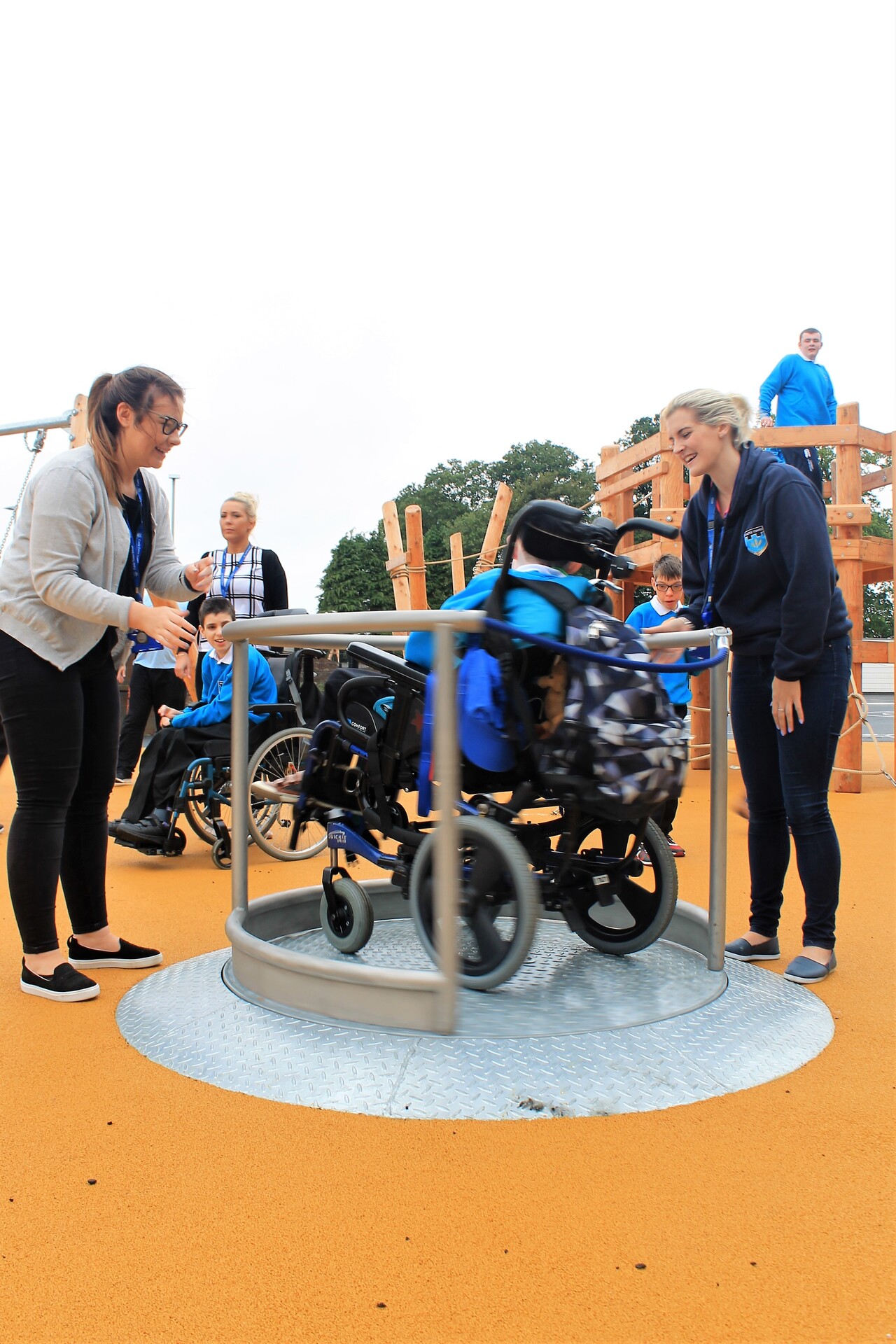

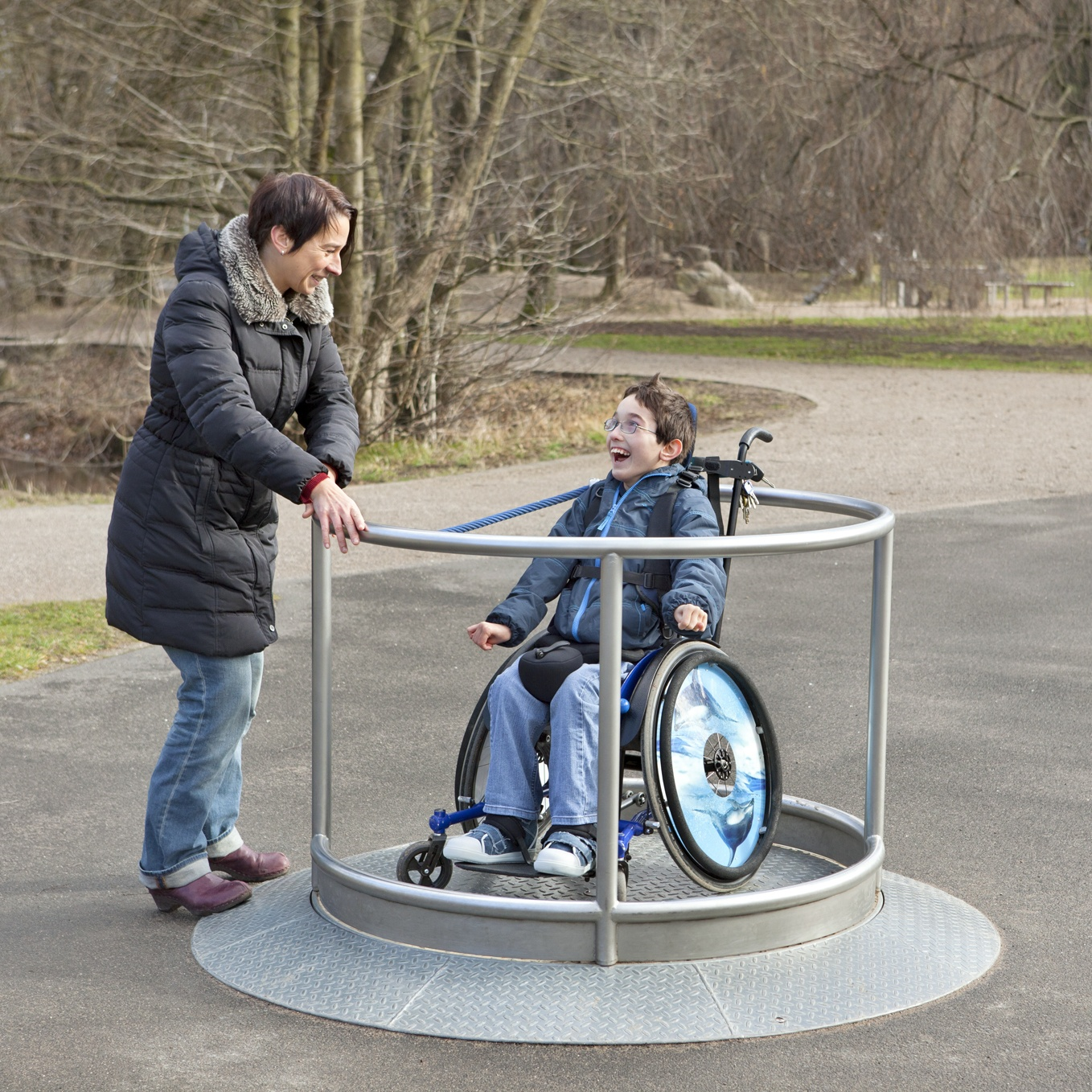

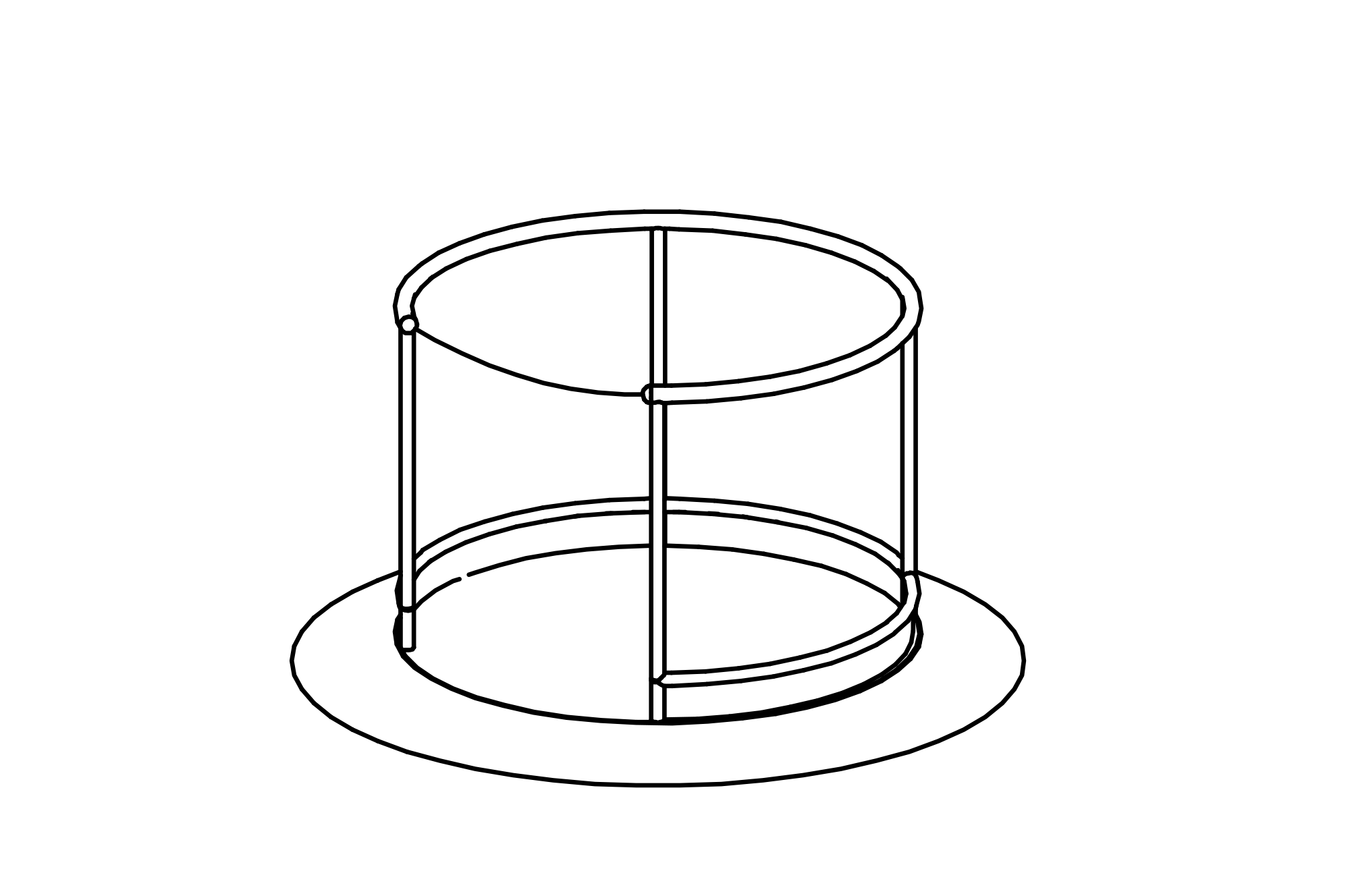

Small Wheelchair Carousel
Device in steel construction, hot-dip galvanised, foam-filled underneath with rigid foam for noise reduction. Handrail made of round tube Ø 42 mm, railing post Ø 30 mm, with wheel deflector at the bottom. Richter-Herkul rope, Ø > 20 mm, made of galvanised six-strand steel cables, wrapped and bonded with polyester yarn, with very good abrasion resistance, firm hold of the sheathing even in the event of punctual damage. High-quality roller bearings made of chrome steel or stainless steel for rotating elements, low-maintenance, easy to replace, sealed. Standard rope colour: blue
Dimension
Length cm:175
Width cm:175
Height cm:90
Falling space
Length cm:525
Width cm:525
Height cm:100
Assembly
Floor anchoring:zum Aufstellen auf tragfähigen, druckfesten Untergrund
